Uv DTF Transfer Printer
video

Uv DTF Transfer Printer

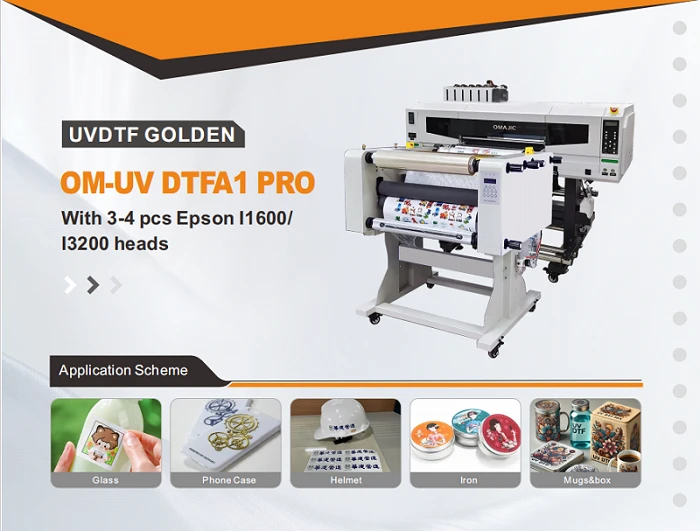

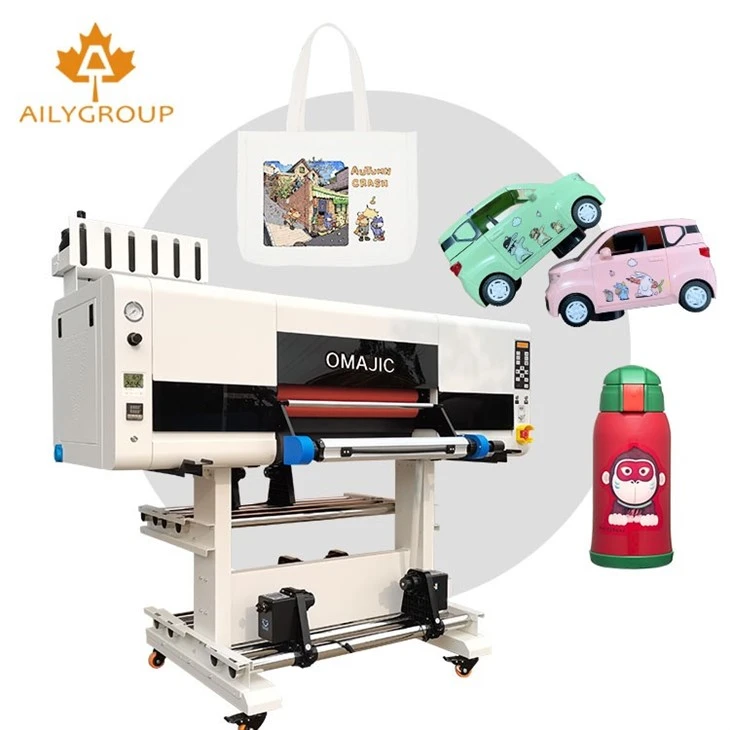

60cm UV DTF Printer or UV Crystal Label Printer With 3-4 pcs Epson I1600/I3200 All In One Can Be Printed On Any Material
Send Inquiry

Description

Technical Parameters

product-700-531


Machine Details
product-800-400
01.

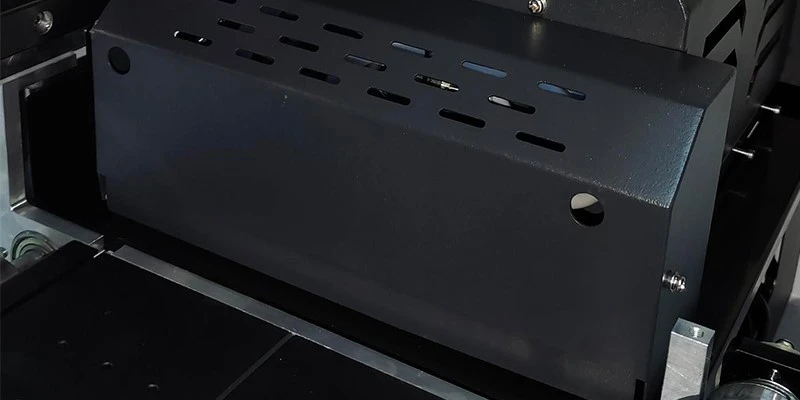

Advance Anti-Collusion Device

1.During printing, avoid the print head from hitting raised objects (such as uneven materials, warped edges, foreign objects, etc.).


2.Prevent mechanical parts (such as printing platforms and guide rails) from being damaged due to collision.

02.

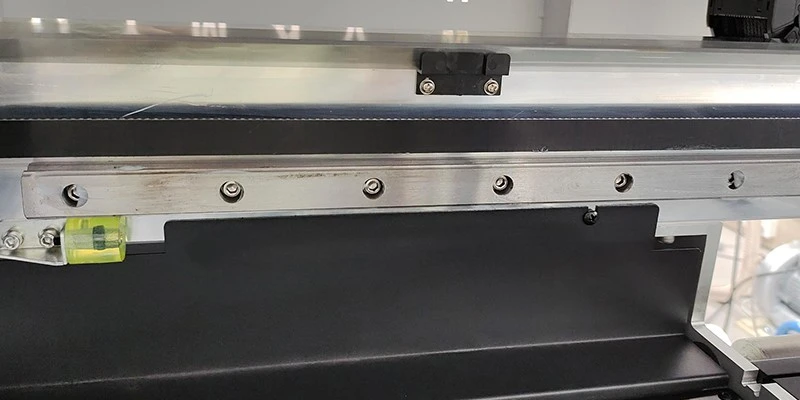

High Quality Component

1. Provide stable support to reduce printing misalignment caused by vibration.


2. Aviation aluminum frame – lightweight and resistant to deformation, suitable for high-speed printing.

product-800-400
product-800-400
03.

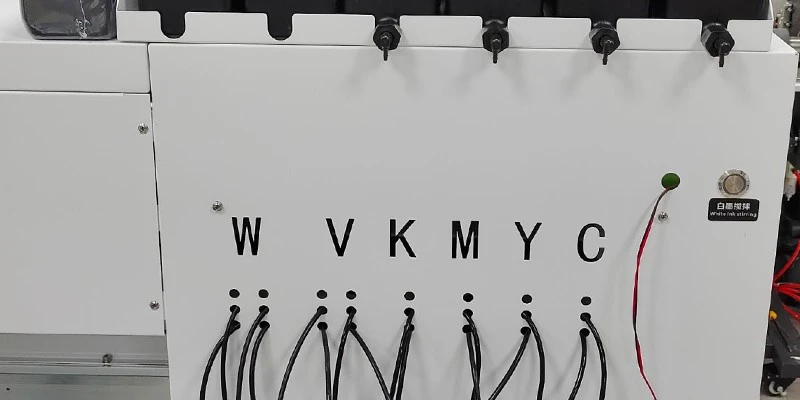

LED light signal reminding to fill the ink

1.Avoid printing interruptions – Prevent job failures due to lack of ink.


2.Protect printheads – Reduce blockage or damage caused by empty prints.

04.

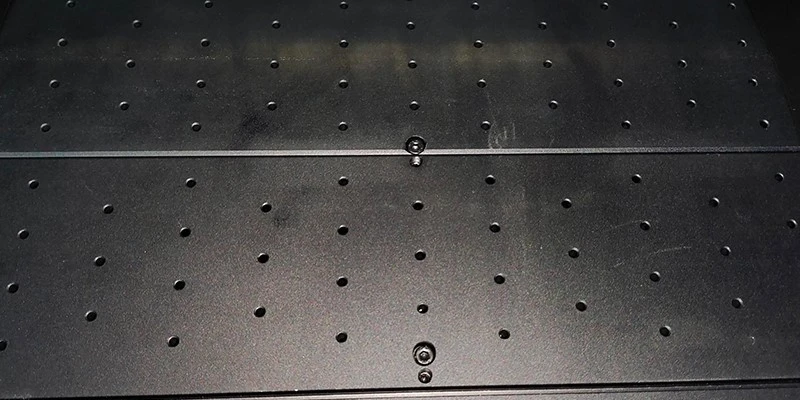

Oxidation treated high precision suction platform

1. Vacuum adsorption: fix the printing material (such as PET film, PVC sheet) through the negative pressure system to prevent displacement or warping during printing.
2. Oxidation surface: the surface of the platform after special oxidation process is rougher, increasing friction and making the material more stable.

product-800-400

product-800-400
05.
Multi-functional

Transparent or colored embossed patterns are formed through UV printing or silk screen printing, which has a three-dimensional touch.

It can be matched with varnish, matte and other effects to present a crystal clear or frosted texture.

06.
Recharge Film Golden Effect Applications

1.Gold stamping LOGO (such as perfume bottle, lipstick tube label).
2.Gold stamping label on the bottle (enhance the sense of high-end).
3.Gold stamping decoration on gift box (holiday limited edition).

product-800-400



APPLICATION







product-800-534 product-800-534
product-800-534 product-800-534
product-800-534 product-800-534



Hot Tags: uv dtf transfer printer, China uv dtf transfer printer manufacturers, suppliers, factory



 product parameters
Model No.
OM-UV DTF A1 PRO
Media length
600mm
Power Consumption
1800W
Printer Head
3-4pcs Epson I3200U1/ I1600U1
Printing Speed
I3200U: 4pass 9㎡/h,6pass 6㎡/h,
I1600U: 8pass 6㎡/h,12pass 4.5㎡/h
Ink Colors
CMYK W V/CMYK W V Golden Varnish
Machine Fuctions
Golden Foil Application, All-In-One Lamination
Software
Ripprint/Phototprint
Working Environment
25℃-30℃ humidty50%-70%
Machine Size&Net Weight
2300*900*700mm ,230KG, 1.45m³
