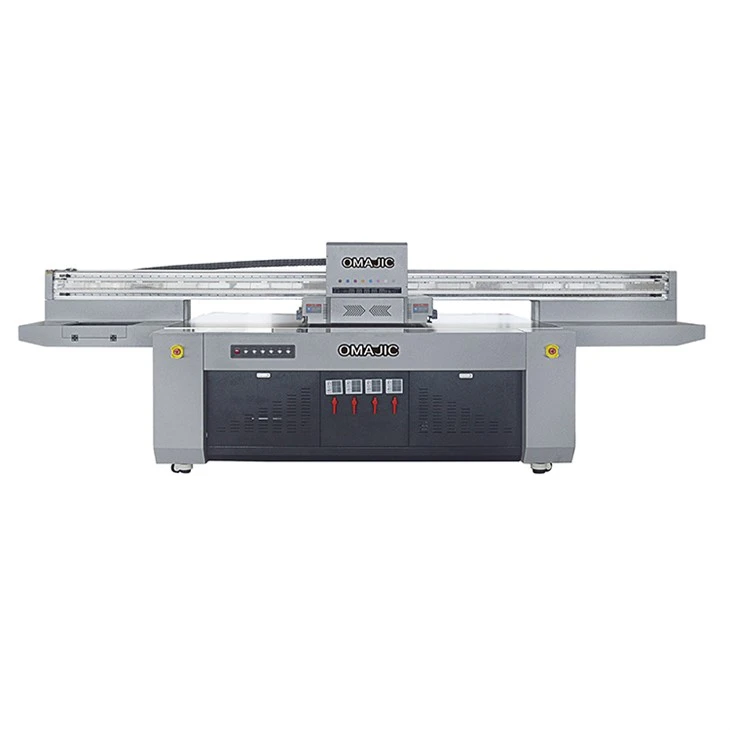

Uv Flatbed Printer For Ceramic Tile

uv printer wit colored

Many products in the traditional advertising industry require multiple processes to complete, such as film production, color registration, and filming.

In the future, most of the process of UV flatbed printer can be directly omitted, that is, it can be completed directly by printing the product.

The UV flatbed printer can directly print various personalized patterns, and can also print embossed varnish and other effects, which is very popular in the market, and the added value is increased by at least 5 times.

The stability cannot be shown on the parameters, but by observing whether the machine will often break ink, plug the head, and leak ink during the printing process, you can know whether the machine is stable.

Model No.	OM-UV2513
Printer Head	3-8pcs Ricoh G5/G6 Print Head
Printing Board	UMC
Machine Motor	Leadshine Servo Motor
Machine Guide	Double THK high speed mute guide
Max Print Size	98"*51"(2500mm*1300mm)
Max Print Height	10cm
Materials to Print	Aluumimum,Polywood,Form board,Metal,Plastic,Glass,Wood,etc
Nozzle Number	1280Nozzles
Ink Colors	CMYK+W+V
Ink Type	UV Ink
Ink Supply	1000ml/Bottle
Printing Speed	Gen5: 4pass:Bi direction/Middle Feather----16sqm/H 6pass:Bi direction/Middle Feather----12sqm/H Gen6:4pass:Bi direction/Middle Feather----24sqm/H 6pass:Bi direction/Middle Feather----18sqm/H
Secondary Ink Tank	Heating Function to keep ink in good state
Printing Method	Drop-on-demand Piezo Electric Inkjet

Advantages of the 2513 Uv Flatbed Printer With Ricoh G5 Head

Ball Screw Movement Hiwin Brand,double screw railways with hight quality		Control Panel Nice Design control panel,easy to operate		Easy Functional Area Solve the machine problems more easy
Ink Lacking Alarming System Automatic Alarming when lack the ink very conveniently		Negative Pressure System Save the inl not clog the heads ,easy to do maintanance		Strong Tank Chain proect the cables use more longer time

Here are some advantages of using the Large Format Uv Flatbed Printer 2513 Flat Bed:

Landscape-oriented table can print on one 4' x 8' board or a variety of pre-cut pieces, and onto objects up to 2" thick

Dual-zoned vacuum table and user-adjustable layout pins

Nozzle Recovery System and Nozzle Check Unit

Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids

Greenguard Gold UV-LED inks in 4 and 6 color configurations plus Clear, Primer and White

Updated RasterLink6 Plus to support 2.5D textured print workflows

USB/Ethernet connectivity
