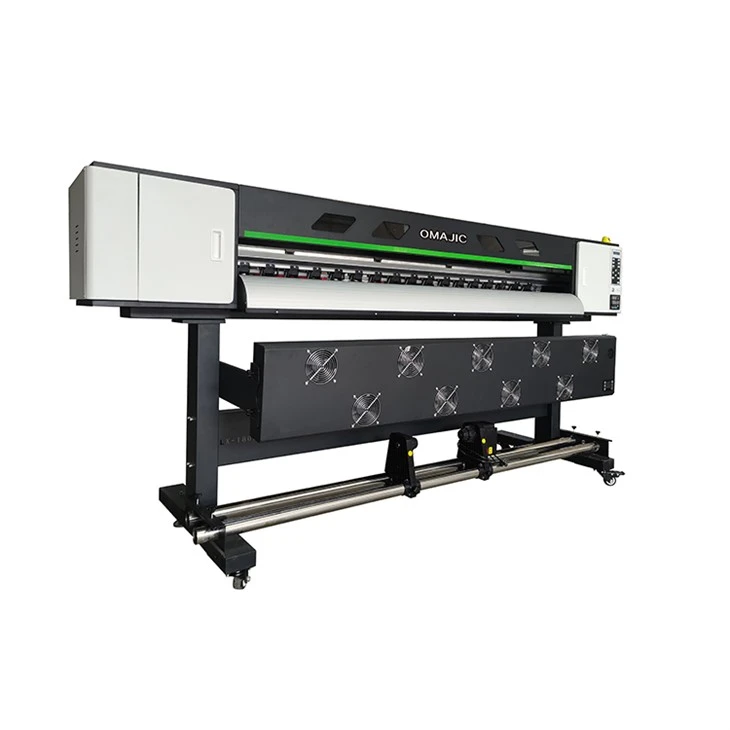

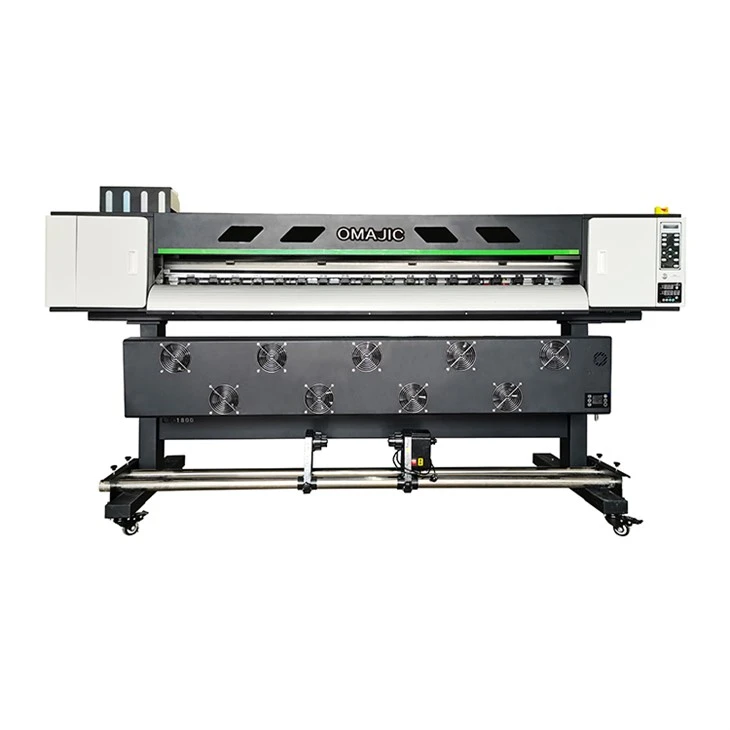

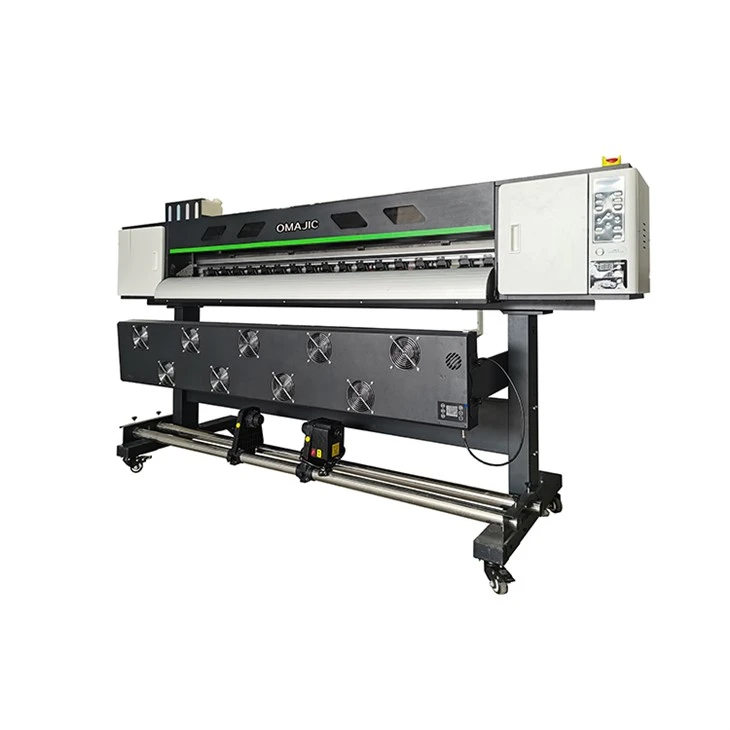

Eco Solvent Printer 1.8 m

Advantage one:

Automatic paper feeding and cutting, roll printing

This large format photo printing device is easy to use thanks to a front touch control panel in the form of a smartphone screen where you can easily find the necessary settings. You can save time and material overruns with convenient auto-feed and auto-cut features.

Advantage two:

nozzle protection

Intelligent infrared anti-collision system is installed on both sides of the machine. Additionally, blotter pad maintenance prevents nozzle clogging. It is still an operator, more at ease, ensuring printing efficiency and printing speed.

Advantage three:

Low cost of original ink

Ink is available in color options. We designed the 220ML cartridge ink delivery system to support clean use and reduce waste. TECO Ink is a formula designed for this series of Epson weak solvents. High printing color and low cost.

Model	OM-ECO1802E
Printhead	two XP600/DX5/DX7/I3200
Printhead life time	6-12months
Maximum printing width	1750mm
Color	CMYK
(4/6/8/pass)Printing speed	4 pass :40m2/h 6 pass :30m2/h
Print material	PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
Printing height	2-5mm adjustable
Quantity of roller pin	14
Rip software	Maintop6.0/ Photoprint
Supply voltage,Power	220V 1350W
Image format	TIFF, JPEG,JPG,PDF,etc.
Operation environment	temperature :27℃ - 35℃, humidity:40%-60%
Aviable ink	eco solvent ink
Consumble of ink for 1sqm(CMYK)	250sqm
Interface type	Lan
Board type (brand)	Senyang
Rail brand	Hiwin
Servo Motor Brand	JMC
Ink tank capacity / waste ink tank capacity	1.2L / 1L
Ink stack drawing method	Lifting ink stack
Ink supply system	Positive and negative supply ink
Beam material	Aluminum
Printer size	2638mm*510mm*700mm
Packing size	2715mm*730mm*700mm
Standard spare parts package	with
Warranty	1 year(except printhead)
Automatic height	with
Anti rubbing material switch	with
Heating system	Front platform heating exterior fan and infrared heater
Additional function	Alarm of short ink Alarm of full of waste ink Alarm of paper shortage
Take-up system	Single motor take-up system(Standard)
Protection of printhead	Automaticlly cleaning system

Advantages Of The Eco Solvent Printer 1.8m

Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying		External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably

Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging		Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably.		Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation

Describe Of Eco Solvent Printer 1.8m

Using Epson dx7 print head, output quality up to 2160DPI precision.

Staggered prints can increase productivity. In the staggered printing mode, the printing speed can reach 17.5 square meters per hour, 4 passes.

The new variable ink drop control technology is adopted to achieve three-level grayscale, making the printing more delicate and precise. it produces perfect prints

4. Front, middle and rear independent heating system, automatic paper picking system, external intelligent timing heating system

Using three intelligent jet printing functions, it can eliminate broken images and make the printing more perfect and delicate.

With automatic ink service station. Self-designed automatic ink absorbing device, easy to operate, easy to maintain, automatic ink absorbing function up and down, reducing ink waste.

With LED light, the picture dries quickly and does not fade.

Equipped with power-off protection device

Step 1 Design image on software or receive customer design	Step 2 Put material on printer	Step 3 The Maintop/RIP/PP software to complete print

Applications

The printer can be used in advertising industry, exhibition design industry, digital promotion, printing and dyeing industry. We are dedicated to providing better and better solutions to our customers.

1. We can not only provide high-quality printers, but also high-quality printing consumables to ensure continuous perfect printing!

2. We provide one-on-one online professional support guidance to ensure that you learn and operate your machine correctly!

3. We can provide different printing solutions to meet the needs of different customers, and can provide discounts for old customers who want to update their dtf printers in different periods!

4. Our dtf printers really help you make money, our printing consumables cost less, save a lot!

It's worth more than it's price! Welcome your inquiry!
