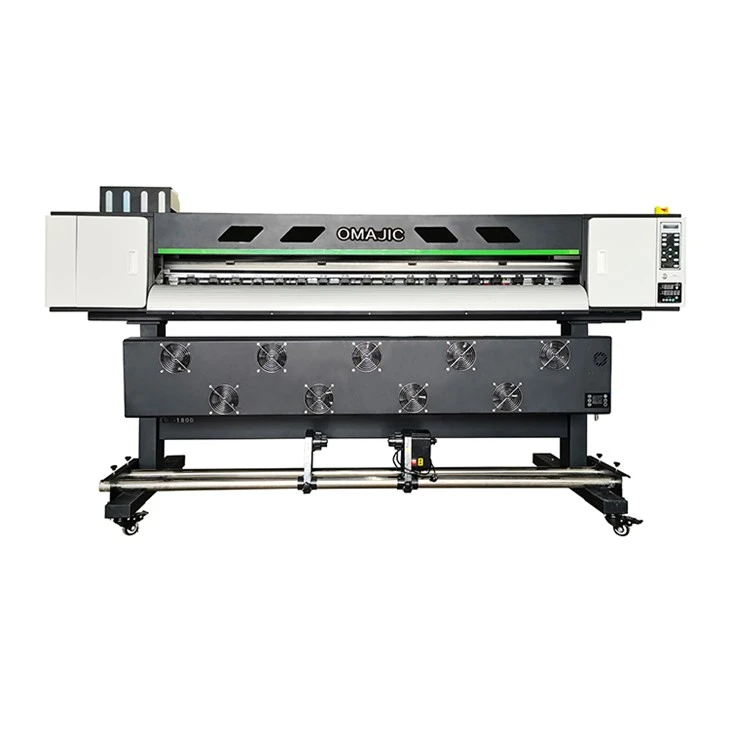

Printing Plotter

A Printing Plotter is a specialized type of printer that is commonly used in the printing and design industry to produce high-quality large prints, such as blueprints, posters, maps and drawings. The is a sophisticated machine that utilizes advanced technology to precisely print large images or designs onto a variety of materials including paper, vinyl, canvas, and fabric.

The functions by using a pen or marking tool to draw or trace an image onto a material, replicating a digitized image or design file. The precision of the tool allows it to create complex designs with high accuracy, and its ability to print large sizes make it ideal for printing blueprints, architectural designs, and engineering plans.

One of the unique features of a Printing Plotter is its capability to print in a wide range of colors, making it capable of producing vivid and detailed images. Moreover, the has a higher resolution than traditional printers, and can print at much faster speeds, increasing productivity and reducing the time it takes to complete a project.

Printing Plotters are also available in different sizes and configurations, making them a flexible and versatile tool for a wide range of applications. Additionally, they can be equipped with various add-ons, such as automatic paper feeders, and cutting blades, which further enhance their functionality.

Are extensively used in different industries, including architecture, engineering, construction, and graphic design. They are particularly useful in large companies and printing shops, as they can handle more extensive projects with greater efficiency than traditional printers.

In conclusion, Printing Plotters are specialized and sophisticated machines that are designed to meet the high demand for large format printing in a variety of industries. They provide high-quality results, impressive speed, and can print on various materials, making them a valuable addition to any printing and design operation.

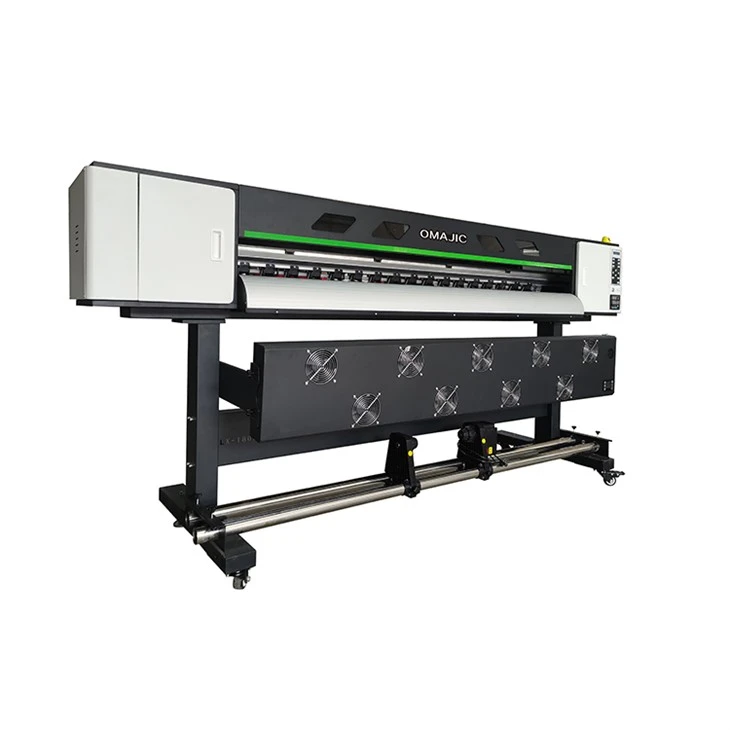

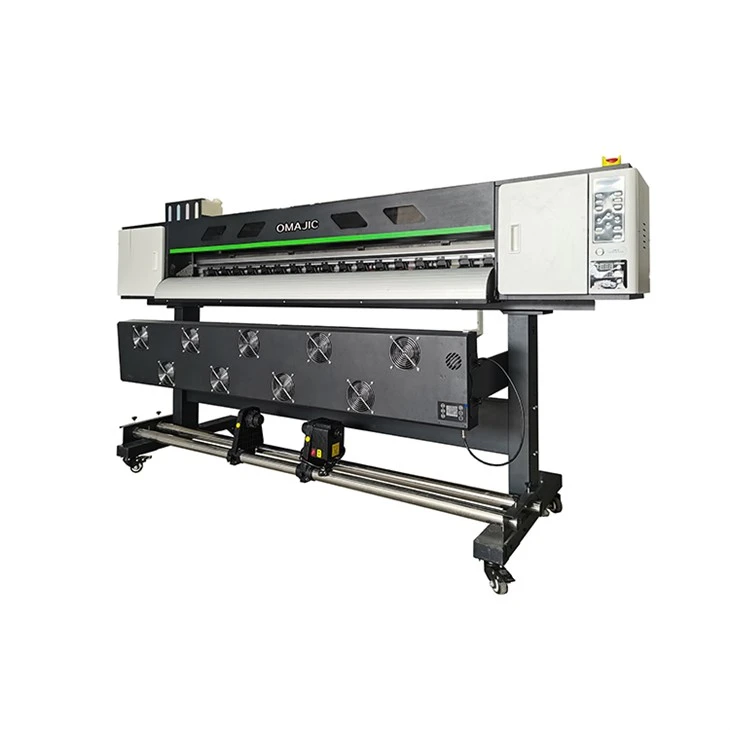

Model	OM-ECO1802E
Printhead	two XP600/DX5/DX7/I3200
Printhead life time	6-12months
Maximum printing width	1750mm
Color	CMYK
(4/6/8/pass)Printing speed	4 pass :40m2/h 6 pass :30m2/h
Print material	PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
Printing height	2-5mm adjustable
Quantity of roller pin	14
Rip software	Maintop6.0/ Photoprint
Supply voltage,Power	220V 1350W
Image format	TIFF, JPEG,JPG,PDF,etc.
Operation environment	temperature :27℃ - 35℃, humidity:40%-60%
Aviable ink	eco solvent ink
Consumble of ink for 1sqm(CMYK)	250sqm
Interface type	Lan
Board type (brand)	Senyang
Rail brand	Hiwin
Servo Motor Brand	JMC
Ink tank capacity / waste ink tank capacity	1.2L / 1L
Ink stack drawing method	Lifting ink stack
Ink supply system	Positive and negative supply ink
Beam material	Aluminum
Printer size	2638mm*510mm*700mm
Packing size	2715mm*730mm*700mm
Standard spare parts package	with
Warranty	1 year(except printhead)
Automatic height	with
Anti rubbing material switch	with
Heating system	Front platform heating exterior fan and infrared heater
Additional function	Alarm of short ink Alarm of full of waste ink Alarm of paper shortage
Take-up system	Single motor take-up system(Standard)
Protection of printhead	Automaticlly cleaning system

Advantages of the Printing Plotter

Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying		External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably

Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging		Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably.		Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation

Step 1 Design image on software or receive customer design	Step 2 Put material on printer	Step 3 The Maintop/RIP/PP software to complete print
