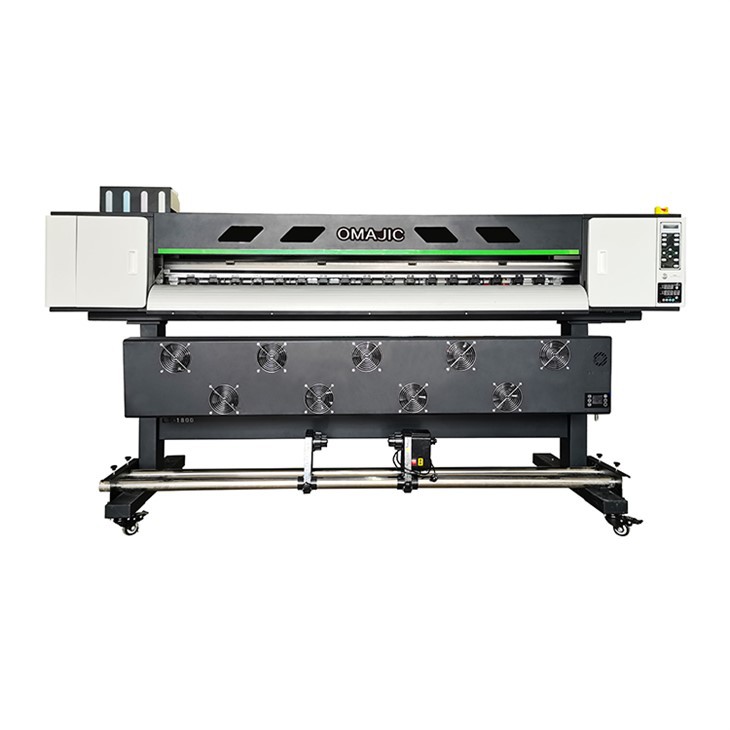

Small Size Eco Solvent Printer

The Small Size Eco Solvent Printer with Two Heads is a large-format printing machine that can handle a range of printing applications. The printer utilizes eco-solvent ink, which is a high-quality, water-resistant ink that can produce vivid and long-lasting prints on a variety of media, including vinyl, fabric, canvas, and more. With two print heads, the printer can print twice as fast, making it ideal for high-volume printing jobs. The machine is equipped with advanced features, such as automatic media feeding and cutting and a user-friendly interface, making it easy and efficient to operate. It is suitable for businesses in the signage, advertising, and printing industries, as well as for individuals who require high-quality large-format printing.

Model	OM-ECO1802E
Printhead	two XP600/DX5/DX7/I3200
Printhead life time	6-12months
Maximum printing width	1750mm
Color	CMYK
(4/6/8/pass)Printing speed	4 pass :40m2/h 6 pass :30m2/h
Print material	PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
Printing height	2-5mm adjustable
Quantity of roller pin	14
Rip software	Maintop6.0/ Photoprint
Supply voltage,Power	220V 1350W
Image format	TIFF, JPEG,JPG,PDF,etc.
Operation environment	temperature :27℃ - 35℃, humidity:40%-60%
Aviable ink	eco solvent ink
Consumble of ink for 1sqm(CMYK)	250sqm
Interface type	Lan
Board type (brand)	Senyang
Rail brand	Hiwin
Servo Motor Brand	JMC
Ink tank capacity / waste ink tank capacity	1.2L / 1L
Ink stack drawing method	Lifting ink stack
Ink supply system	Positive and negative supply ink
Beam material	Aluminum
Printer size	2638mm*510mm*700mm
Packing size	2715mm*730mm*700mm
Standard spare parts package	with
Warranty	1 year(except printhead)
Automatic height	with
Anti rubbing material switch	with
Heating system	Front platform heating exterior fan and infrared heater
Additional function	Alarm of short ink Alarm of full of waste ink Alarm of paper shortage
Take-up system	Single motor take-up system(Standard)
Protection of printhead	Automaticlly cleaning system

Advantages of Small Size Eco Solvent Printer

Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying		External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably

Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging		Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably.		Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation

Step 1 Design image on software or receive customer design	Step 2 Put material on printer	Step 3 The Maintop/RIP/PP software to complete print
