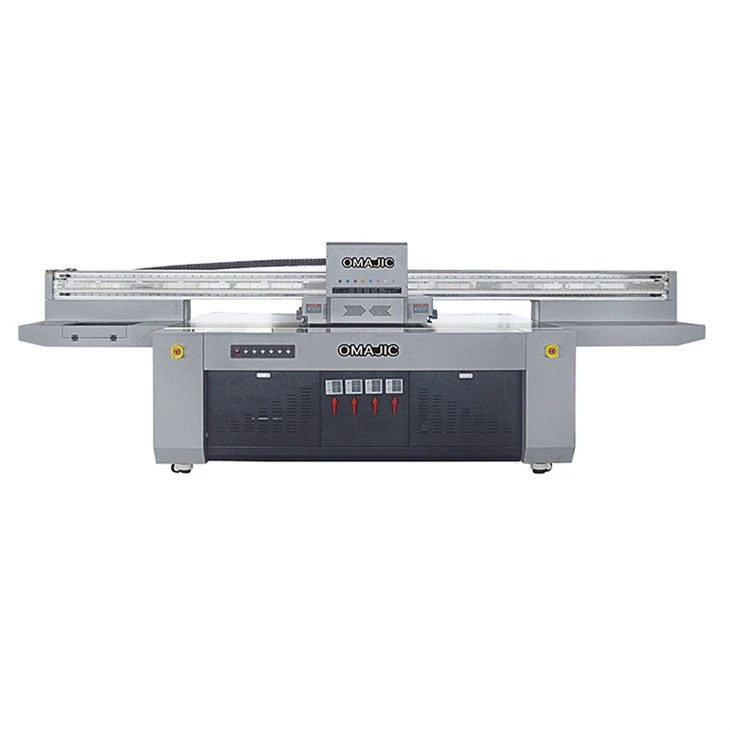

2513 Uv Flatbed Printer With Ricoh G5 Head
Description
Technical Parameters
Products Description of 2513 Uv Flatbed Printer With Ricoh G5 Head
Built upon the proven technology of industry-leading flatbed printer, the OM-UV 2513 G5I offers expanded capabilities with greater productivity and functionality. New features include a draft mode that enables a maximum print speed of up to 12 boards per hour and three staggered printheads that allow for simultaneous printing without sacrificing speed, even when using white and clear inks. This model offers faster mechanical motors and a vacuum foot pedal, giving the user the ability to load or unload various substrates quicker and more effectivity.
Products parameters
| Model No. | OM-UV2513 |
| Printer Head | 3-8pcs Ricoh G5/G6 Print Head |
| Printing Board | UMC |
| Machine Motor | Leadshine Servo Motor |
| Machine Guide | Double THK high speed mute guide |
| Max Print Size | 98"*51"(2500mm*1300mm) |
| Max Print Height | 10cm |
| Materials to Print | Aluumimum,Polywood,Form board,Metal,Plastic,Glass,Wood,etc |
| Nozzle Number | 1280Nozzles |
| Ink Colors | CMYK+W+V |
| Ink Type | UV Ink |
| Ink Supply | 1000ml/Bottle |
| Printing Speed | Gen5: 4pass:Bi direction/Middle Feather----16sqm/H 6pass:Bi direction/Middle Feather----12sqm/H Gen6:4pass:Bi direction/Middle Feather----24sqm/H 6pass:Bi direction/Middle Feather----18sqm/H |
| Secondary Ink Tank | Heating Function to keep ink in good state |
| Printing Method | Drop-on-demand Piezo Electric Inkjet |
Advantages of the 2513 Uv Flatbed Printer With Ricoh G5 Head
 |  |  | ||
Ball Screw Movement Hiwin Brand，double screw railways with hight quality | Control Panel Nice Design control panel，easy to operate | Easy Functional Area Solve the machine problems more easy | ||
 |  |  | ||
Ink Lacking Alarming System Automatic Alarming when lack the ink very conveniently | Negative Pressure System Save the inl not clog the heads ，easy to do maintanance | Strong Tank Chain proect the cables use more longer time |
Here are some advantages of using the Large Format Uv Flatbed Printer 2513 Flat Bed:
Landscape-oriented table can print on one 4’ x 8’ board or a variety of pre-cut pieces, and onto objects up to 2” thick
Dual-zoned vacuum table and user-adjustable layout pins
Nozzle Recovery System and Nozzle Check Unit
Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids
Greenguard Gold UV-LED inks in 4 and 6 color configurations plus Clear, Primer and White
Updated RasterLink6 Plus to support 2.5D textured print workflows
USB/Ethernet connectivity
