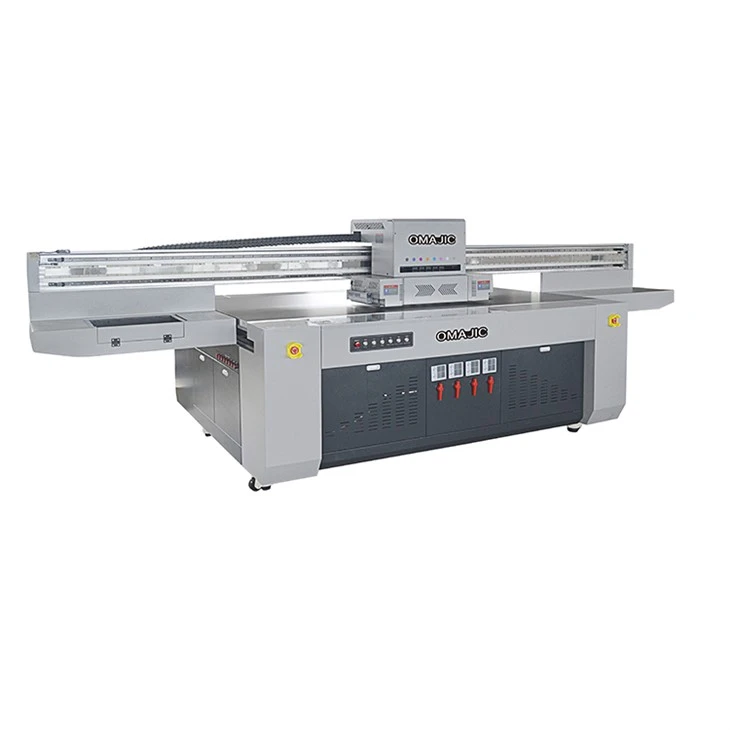

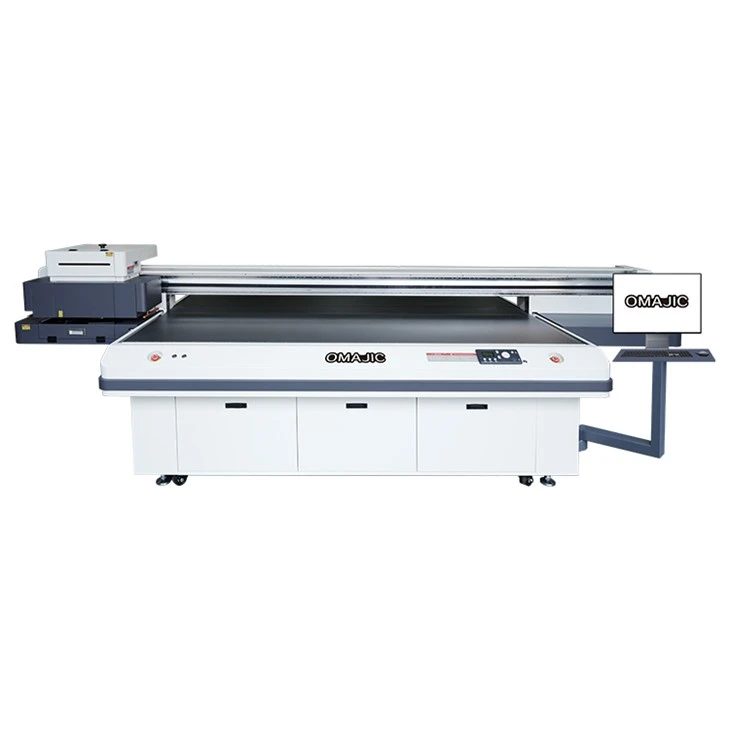

Uv Printer For Ceramic

1.Supports 1200dpi resolution, realizes micron-level ink drop control, and is suitable for complex patterns, gradient transitions, and fine text (such as circuit board markings, micro QR codes). Multi-grayscale printhead technology (such as 6-level grayscale) reduces the sense of ink drop stacking and improves image smoothness.

1.Prevent ink flying or false printing due to height fluctuation of the print head. Adopt high rigidity aluminum alloy substrate (such as 6061-T6), the oxide layer enhances the structural strength, and does not deform under long-term load (such as 500kg/m²), which is suitable for large-format thick plate printing.

1. The vacuum degree of the pump reaches above -85kPa. When two pumps are connected in parallel, the maximum negative pressure is increased to -95kPa. It can firmly adsorb heavy (such as marble, metal plates) or ultra-thin flexible materials.

1. The ball screw is used with a lead accuracy of ±5μm/300mm, ensuring that the Y-axis movement error is extremely small, meeting the stringent requirements of 1200dpi printing for position accuracy.

1. The system has a built-in high-precision pressure sensor (±1Pa resolution) and a micro air pump to monitor the negative pressure of the ink path in real time and intelligently adjust it to the optimal range of -20kPa to -40kPa (adapting to UV inks of different viscosities), ensuring constant pressure ink supply to the print head and eliminating ink flying or ink breakage.

1. Avoid printing defects (such as snowflakes and foggy smudges) caused by dust absorption or ink splashing. Suitable for PET film, acrylic, PVC and other easily charged materials, especially to solve the problem of feeding jams caused by static adhesion of film media (thickness <0.5mm).
