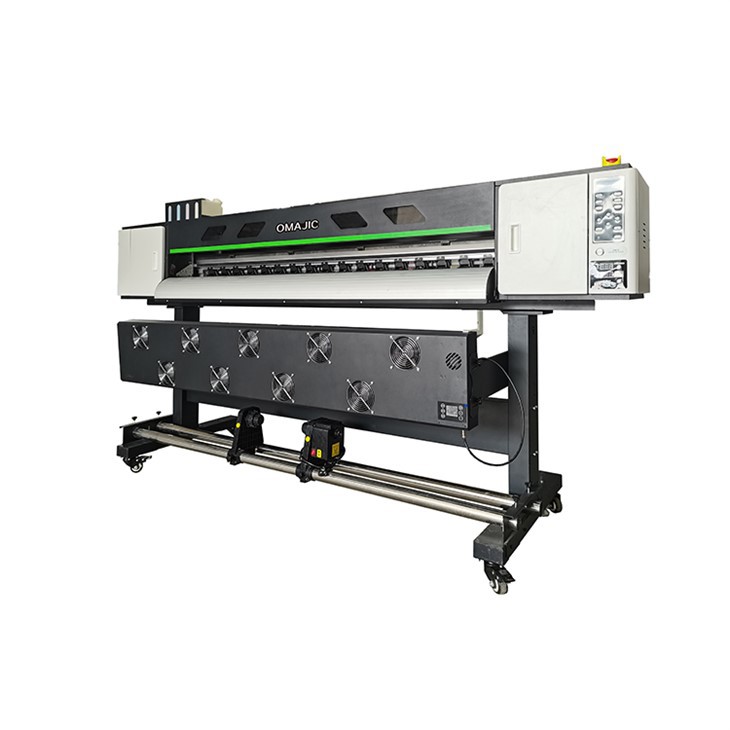

Products Description of Eco Solvent 6 Feet Printer
Eco-solvent printers and printer-cutters represent the most reliable, versatile wide-format inkjet printer offerings on the market. Designed and developed for customers who demand higher standards in speed, quality and versatility, it provides business operations with higher productivity and profitability than other printers can provide.
Products parameters
| Model | OM-ECO1801E |
| Printhead | two XP600/DX5/DX7/I3200 |
| Printhead life time | 6-12months |
| Maximum printing width | 1850mm |
| Color | CMYK |
| (4/6/8/pass)Printing speed | 4 pass :40m2/h 6 pass :30m2/h |
| Print material | PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc. |
| Printing height | 2-5mm adjustable |
| Quantity of roller pin | 14 |
| Rip software | Maintop6.0/ Photoprint |
| Supply voltage,Power | 220V 1350W |
| Image format | TIFF, JPEG,JPG,PDF,etc. |
| Operation environment | temperature :27℃ - 35℃, humidity:40%-60% |
| Aviable ink | eco solvent ink |
| Consumble of ink for 1sqm(CMYK) | 250sqm |
| Interface type | Lan |
| Board type (brand) | Senyang |
| Rail brand | Hiwin |
| Servo Motor Brand | JMC |
| Ink tank capacity / waste ink tank capacity | 1.2L / 1L |
| Ink stack drawing method | Lifting ink stack |
| Ink supply system | Positive and negative supply ink |
| Beam material | Aluminum |
| Printer size | 2638mm*510mm*700mm |
| Packing size | 2715mm*730mm*700mm |
| Standard spare parts package | with |
| Warranty | 1 year(except printhead) |
| Automatic height | with |
| Anti rubbing material switch | with |
| Heating system | Front platform heating exterior fan and infrared heater |
| Additional function | Alarm of short ink Alarm of full of waste ink Alarm of paper shortage |
| Take-up system | Single motor take-up system(Standard) |
| Protection of printhead | Automaticlly cleaning system |
Advantages of the Eco Solvent 6 Feet Printer
 |
 |
|
|
Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying |
External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably |
 |
 |
 |
||
|
Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging |
Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably. |
Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation |
Advantages of Eco Solvent 6 Feet Printer:
high resolution
2 well-known eco-solvent print heads can reach true 1440dpi
Newly designed silent linear guides on the horizontal beam ensure precise printing
Japanese speed, Chinese price
new innovation
GZ console with independent intellectual property rights
Rigid CNC aluminum block print head mounting base
Special print head mounting base to protect the print head
The newly improved capping block perfectly protects the print head
multifunctional
One head 4 colors for high-resolution and high-saturation high-speed
The best USB interface new control board to protect the print head
middle. and front heating system with PID temperature control unit
The newly designed retrieving/feeding system keeps feeding for a long time
easy to control
Print head nozzle surface cleaning automatic wiping system Automatic capping system perfectly protects the print head Photoprint 11 /Wasatch/Maintop...+GZ console software
 |
 |
 |
|
Step 1 Design image on software or receive customer design |
Step 2 Put material on printer |
Step 3 The Maintop/RIP/PP software to complete print |
Why choose us?
1. We are specialized in digital printers, printing inks and printer spare parts.
2. We have professional engineers with more than 15 years of experience to help you solve various problems.
3. We have good after-sales service, one year warranty, well packaged and fast.
4. If you have any questions, our engineer can serve overseas and help you solve the problem.
5. We have a big market and many customers all over the world.
6. Our annual sales are big because we do well.
