Products Description of Plotter Plotter

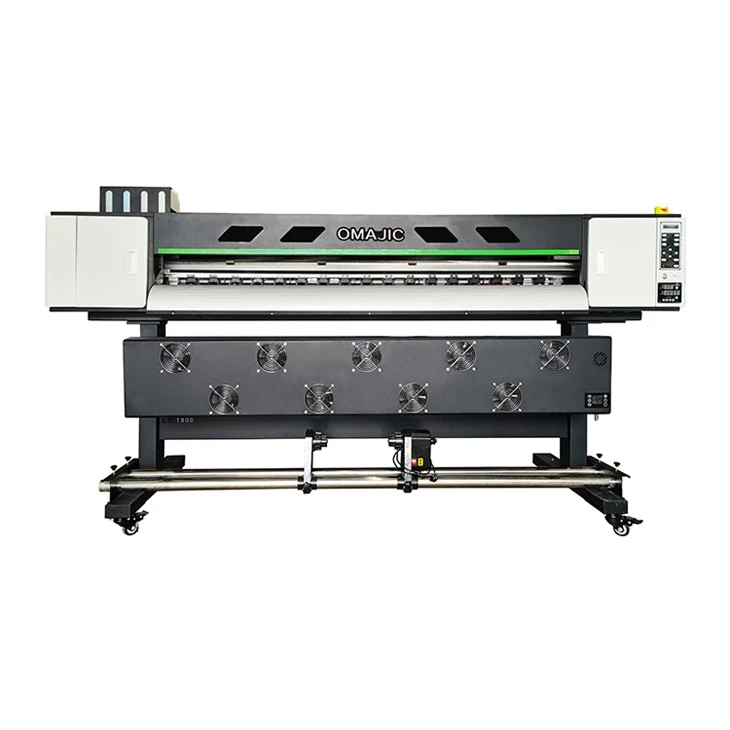

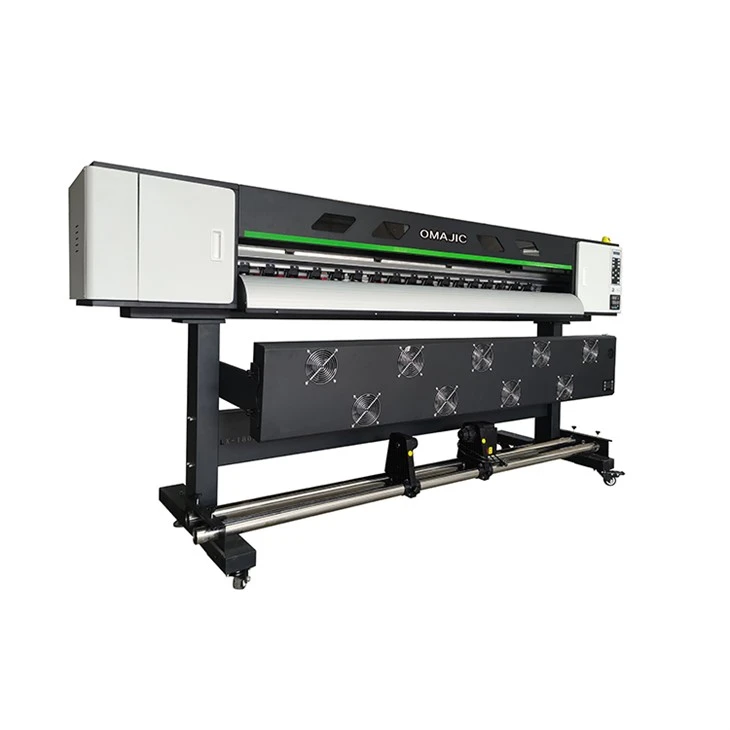

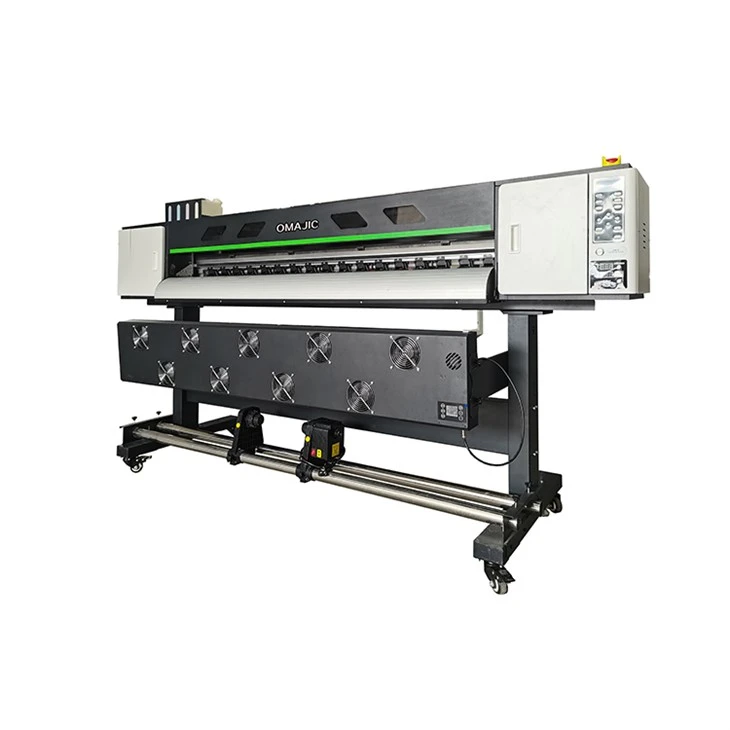

The Plotter Plotter is a large-format printing machine that can handle a range of printing applications. The printer utilizes eco-solvent ink, which is a high-quality, water-resistant ink that can produce vivid and long-lasting prints on a variety of media, including vinyl, fabric, canvas, and more. With two print heads, the printer can print twice as fast, making it ideal for high-volume printing jobs. The machine is equipped with advanced features, such as automatic media feeding and cutting and a user-friendly interface, making it easy and efficient to operate. It is suitable for businesses in the signage, advertising, and printing industries, as well as for individuals who require high-quality large-format printing.
Products parameters
| Model | OM-ECO1802E |
| Printhead | two XP600/DX5/DX7/I3200 |
| Printhead life time | 6-12months |
| Maximum printing width | 1750mm |
| Color | CMYK |
| (4/6/8/pass)Printing speed | 4 pass :40m2/h 6 pass :30m2/h |
| Print material | PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc. |
| Printing height | 2-5mm adjustable |
| Quantity of roller pin | 14 |
| Rip software | Maintop6.0/ Photoprint |
| Supply voltage,Power | 220V 1350W |
| Image format | TIFF, JPEG,JPG,PDF,etc. |
| Operation environment | temperature :27℃ - 35℃, humidity:40%-60% |
| Aviable ink | eco solvent ink |
| Consumble of ink for 1sqm(CMYK) | 250sqm |
| Interface type | Lan |
| Board type (brand) | Senyang |
| Rail brand | Hiwin |
| Servo Motor Brand | JMC |
| Ink tank capacity / waste ink tank capacity | 1.2L / 1L |
| Ink stack drawing method | Lifting ink stack |
| Ink supply system | Positive and negative supply ink |
| Beam material | Aluminum |
| Printer size | 2638mm*510mm*700mm |
| Packing size | 2715mm*730mm*700mm |
| Standard spare parts package | with |
| Warranty | 1 year(except printhead) |
| Automatic height | with |
| Anti rubbing material switch | with |
| Heating system | Front platform heating exterior fan and infrared heater |
| Additional function | Alarm of short ink Alarm of full of waste ink Alarm of paper shortage |
| Take-up system | Single motor take-up system(Standard) |
| Protection of printhead | Automaticlly cleaning system |
Advantages of Plotter Plotter
 |
 |
|
|
Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying |
External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably |
 |
 |
 |
||
|
Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging |
Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably. |
Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation |
What are the advantages of Plotter Plotter
1. High Precision: Plotter produces highly precise and accurate designs, graphics and text with a high level of accuracy, making it an ideal tool for critical projects such as engineering drawings and architectural designs.
2. Large Format: Plotter can print large and complex designs in a single piece, whereas traditional printing techniques cannot handle larger sizes. This makes it ideal for creating large banners, signs, and other large-scale graphics.
3. Versatility: Plotter works with a wide range of materials, from standard paper to vinyl, fabric, and more. This makes it a versatile tool for creating diverse designs, including vehicle wraps, banners, custom apparel and more.
4. Speed: Plotter printing can produce high-quality output at a much faster rate than traditional printing methods. This means that even large and complex designs can be produced quickly, saving businesses time and cost.
5. Durability: Plotter printing produces high-quality designs that are highly durable and long-lasting. This means that prints last longer and do not fade or peel easily, making them ideal for outdoor and commercial use.
6. Cost-Effective: Plotter printing is cost-effective compared to traditional printing methods. This makes it an excellent solution for businesses and individuals looking for high-quality printing without breaking the bank.
 |
 |
 |
|
Step 1 Design image on software or receive customer design |
Step 2 Put material on printer |
Step 3 The Maintop/RIP/PP software to complete print |
