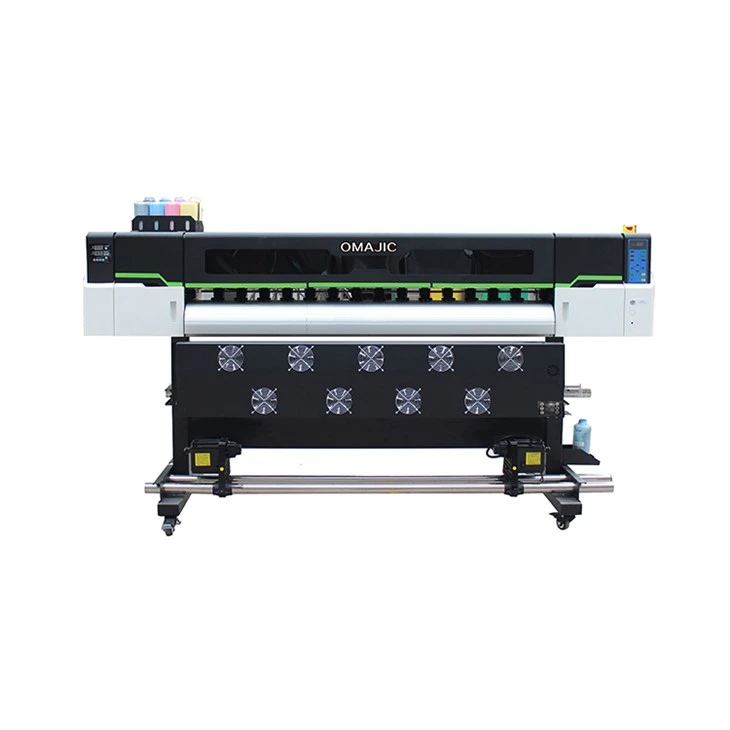

Heavy Duty 1.8m Eco Solvent Printer Machine With 4pcs I3200 Heads

Heavy Duty 1.8m Eco Solvent Printer Machine With 4pcs I3200 Heads

Print head: 4pcs epson I3200/DX5
Print speed: 4Pass 40sqm/h, 6Pass 30sqm/h
Ink type: Eco solvent ink
Printing materials: suitable for indorr and outdoor such as PP paper,Car sticker / Lamp cloth / Face film / Coated banner / Flag cloth...etc
Send Inquiry

Description

Technical Parameters

ECO1802-1804PRO_05

Products Description of Heavy Duty 1.8m Eco Solvent Printer Machine With 4pcs I3200 Heads

Solvent printers are our most popular models. With its stylish appearance, stable performance, wide application range and high cost performance, it has won a good reputation in the domestic market and overseas dealers.

(1) Stylish appearance and durable mechanical design

(2) EPS DX5/XP600/4720 print head for high resolution image output

(3) Standard ICC files tested with different printheads and our inks for best performance

(4) 1850mm large print size to meet various print jobs of your business

(5) Easy to install, use and maintain.


ECO1802-1804PRO_11

Products parameters

Model No.

OM-ECO1804Pro

Machine Type

Automatic, Flatbed, Heavy Body, Digital Printer

Printer Head

2pcs i3200 Print Head

Max Print Size

70' (180cm)

Max Print Height

1-5mm

Materials to Print

PP Paper/Backlit film/Wall paperlvinylOne-way vision/Flex banner etc

Printing Method

Drop-on-demand Piezo Electric Inkjet

Printing Direction

Unidirectional Printing or Bi-directional Printing Mode

Printing Resolution

Standard Dpi: 720×1200dpi

Printing Quality

True Photographic Quality

Nozzle Number

3200

Ink Colors

CMYK

Ink Type

Eco Solvent Ink

Ink System

CISS Built Inside With Ink Bottle

Ink Consumption

360*1800dpi 3pass C/M/Y/K=16ml/sqm

720*1200dpi 4pass C/M/Y/K=16ml/sqm

720*2400dpi 6pass C/M/Y/K=25ml/sqm

Ink Supply

2L ink tank with positive pressure continuos supply (Bulk ink system)

Printing Speed

2pcs I3200 head : 4pass 40sqm/h 720*2400dpi 6pass 30sqm/h / 4 pcs I3200 head :360*1800dpi 3pass 105sqm/h 720*1200dpi 4pass 82sqm/h 720*2400dpi 6pass 56sqm/h

File Format

PDF,JPG,TIFF,EPS,AI,etc

Height Adjustment

Automatic With Sensor.

Media Feeding System

Manual

Max Media Weight

30 KG

Operating System

WINDOWS 7/WINDOWS 8/WINDOWS 10

Interface

3.0 LAN

Software

ONYX/SAi PhotoPrint/Ripprint

Languages

Chinese/English

Voltage

110V/ 220V

Power Consumption

1350w

Working Environment

20-28 Degrees.

Package Type

Wooden Case

Machine Size

3025*824*1476mm

Net Weight

250kg

Gross Weight

300kg

Packing Size

2930*760*850mm

Price Includes

Printer,software, Inner six angle wrench, Small screwdriver, Ink absorption mat, USB cable, Syringes, Damper, User manual, Wiper, Wiper Blade, Mainboard fuse, Replace screws and nuts


Advantages of the Heavy Duty 1.8m Eco Solvent Printer Machine With 4pcs I3200 Heads

ECO1802-1804PRO_14_06

ECO1802-1804PRO_14_08

ECO1802-1804PRO_14_10

Bulk ink system


Two levels ink tank , avoid clog the print head


Servo motor


Working more smooth and without noisy .


Three foot pinch rollers


This roller fix the materials more stable not broken


The head during printing.






ECO1802-1804PRO_14_16

ECO1802-1804PRO_14_18

ECO1802-1804PRO_14_20

Hiwin guide


Hiwin Brand guide , working more longer life time .


Collector


Include the take up system as free ,working stable


Lifting automatically

capping station


lifting automatic .easy to do the maintain


Here are some advantages of using the Heavy Duty 1.8m Eco Solvent Printer Machine With 4pcs I3200 Heads:


Eco Solvent Printer Machine has several advantages that can impress foreign buyers. These advantages can be described in 500 words or more as follows:


1. High-quality prints: Eco Solvent Printer Machine produces high-quality prints with sharp and vibrant colors. The prints do not fade quickly and are resistant to water, UV, and scratch.


2. Versatility: The machine can print on a wide range of materials such as vinyl, fabric, canvas, and paper. This makes it suitable for various applications such as banners, posters, signage, packaging, and labels.


3. Easy to use: Eco Solvent Printer Machine is user-friendly and easy to operate. It comes with a user manual and software that simplifies the printing process. The machine does not require extensive training to operate.


4. Low maintenance: The machine requires minimal maintenance, which makes it cost-effective. It has a self-cleaning mechanism that keeps the print heads clean and prevents clogging.


5. Energy efficiency: The machine is energy-efficient and has low power consumption. This reduces the operating costs and makes it an environmentally friendly option.


6. Fast printing speed: Eco Solvent Printer Machine can print at high speed, which saves time and increases productivity. The machine can produce several prints in a short time, making it suitable for large-scale printing projects.


7. High-resolution printing: The machine uses advanced technology to produce high-resolution prints with sharp and clear details. This makes it ideal for printing images and photographs.


8. Durable prints: Eco Solvent Printer Machine produces prints that are durable and can withstand harsh weather conditions. This makes it suitable for outdoor applications such as billboards and vehicle wraps.


9. Cost-effective: The machine is cost-effective and offers a high return on investment. It reduces the cost of printing and increases the profit margin for businesses.


10. Customizable prints: The machine allows customization of prints, which gives businesses a competitive advantage. Companies can customize their prints to meet the specific needs of their customers.


11. Long-lasting prints: The prints produced by EcoSolventPrinterMachine are long-lasting and can last for several years. This makes it a cost-effective option for businesses that require prints that can last for a long time.


12. Low odor: The machine produces low odor prints, which makes it suitable for indoor applications such as wall decorations and indoor signage.


13. Wide color gamut: The machine has a wide color gamut, which allows it to produce prints with vibrant colors and a high level of accuracy.


14. Flexibility: Eco Solvent Printer Machine is flexible and can be used for various applications such as printing on a wide range of materials, including those with uneven surfaces.


15. Environmentally friendly: The machine is environmentally friendly and does not produce harmful emissions. It uses eco-solvent inks that are safe for the environment.


In conclusion, has several advantages that can appeal to foreign buyers. These advantages include high-quality prints, versatility, ease of use, low maintenance, energy efficiency, fast printing speed, high-resolution printing, durable prints, cost-effectiveness, and customization options. These features make it stand out from other printing machines and a top choice for businesses that require high-quality prints with a fast turnaround time.


ECO1802-1804PRO_20

FAQ

1. Why choose us?

The company has a professional technical team to serve customers 24 hours a day and solve a series of problems for customers.


2. Do you have stock for all your machines?

Basically, they are all in stock. Please contact us if necessary.


3. What service can you provide?

I will provide remote video technical support and 24-hour online service.


Scope Of Application

This equipment can be used for advertising signs, photo printing, outdoor advertising, printing, home decoration, industrial design, industrial processing and manufacturing, photo studio image, digital printing and dyeing, art reproduction, handicraft processing, clothing printing, sports equipment printing, car decoration, packaging printing , oil painting reproduction, art glass, art movable doors and other industries. For more applications of this product equipment, please consult customer service.
