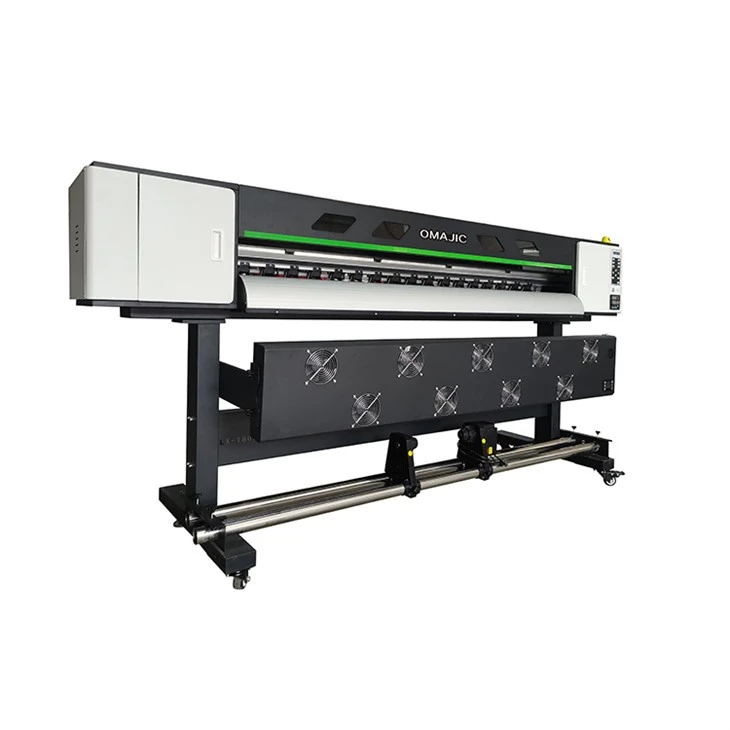

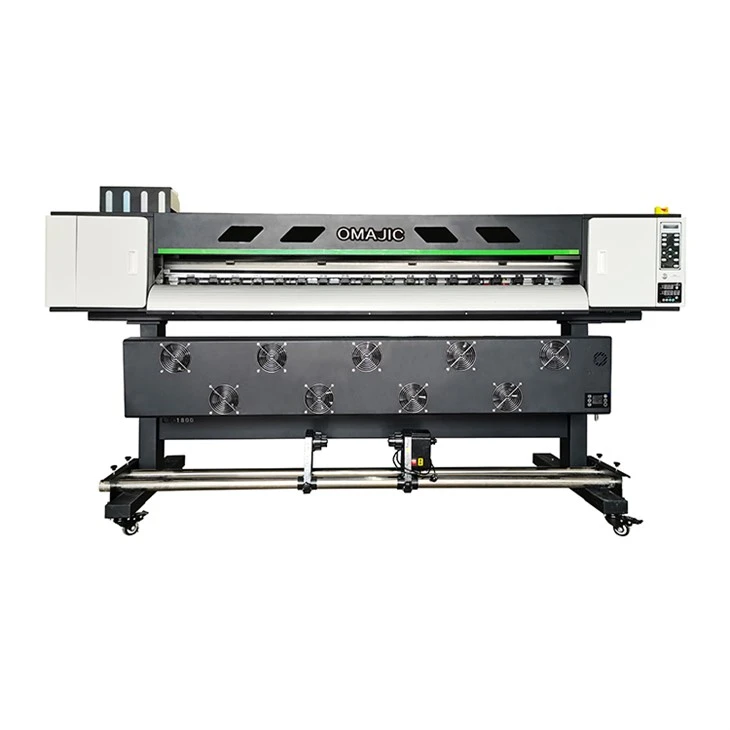

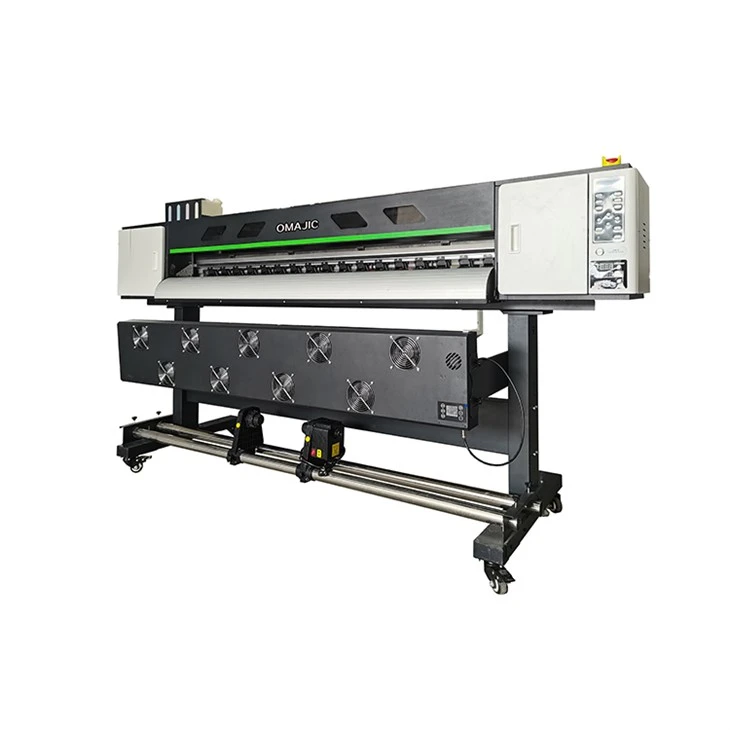

Products Description of Inkjet Plotter
Inkjet plotters are a type of large format printer that use inkjet technology to produce detailed and high quality prints on various sizes of paper, vinyl, fabric, and other materials. These plotters are often used in a variety of fields, including engineering, architecture, graphic design, and fine art.

Products parameters
| Model | OM-ECO1802E |
| Printhead | two XP600/DX5/DX7/I3200 |
| Printhead life time | 6-12months |
| Maximum printing width | 1750mm |
| Color | CMYK |
| (4/6/8/pass)Printing speed | 4 pass :40m2/h 6 pass :30m2/h |
| Print material | PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc. |
| Printing height | 2-5mm adjustable |
| Quantity of roller pin | 14 |
| Rip software | Maintop6.0/ Photoprint |
| Supply voltage,Power | 220V 1350W |
| Image format | TIFF, JPEG,JPG,PDF,etc. |
| Operation environment | temperature :27℃ - 35℃, humidity:40%-60% |
| Aviable ink | eco solvent ink |
| Consumble of ink for 1sqm(CMYK) | 250sqm |
| Interface type | Lan |
| Board type (brand) | Senyang |
| Rail brand | Hiwin |
| Servo Motor Brand | JMC |
| Ink tank capacity / waste ink tank capacity | 1.2L / 1L |
| Ink stack drawing method | Lifting ink stack |
| Ink supply system | Positive and negative supply ink |
| Beam material | Aluminum |
| Printer size | 2638mm*510mm*700mm |
| Packing size | 2715mm*730mm*700mm |
| Standard spare parts package | with |
| Warranty | 1 year(except printhead) |
| Automatic height | with |
| Anti rubbing material switch | with |
| Heating system | Front platform heating exterior fan and infrared heater |
| Additional function | Alarm of short ink Alarm of full of waste ink Alarm of paper shortage |
| Take-up system | Single motor take-up system(Standard) |
| Protection of printhead | Automaticlly cleaning system |
Advantages of the OMAJIC Inkjet Plotter
![]() | ![]() | |
Take-up paper system Dual motor front and back paper feeding,Leadshine External and Internal drying | External and Internal drying 9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably |
![]() | ![]() | ![]() | ||
Lifting ink station Automatic lifting ink stack and Printhead moisturizing when printer off,Prevent nozzle clogging | Ink Supply system 1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably. | Anti-collision device Anti-collision device for printhead, prevent printhead hitting causing lmproper operation |
Some of the key features and characteristics of inkjet plotters include:
1. High quality prints: Use advanced printing technology that allows for high resolution output with sharp lines and vibrant colors. This makes them ideal for producing detailed technical drawings, professional-grade designs, and high-quality photographs.
2. Wide format printing: Inkjet plotters are designed to handle larger paper sizes and can accommodate materials ranging from 11x17 to 60 inches wide. This makes them perfect for creating large posters, banners, and signage, as well as oversized blueprints and engineering designs.
3. Versatility:Can print on a wide range of materials, including paper, vinyl, fabric, and even rigid materials such as foam board and PVC. They can also accommodate a variety of thicknesses and weights, making them ideal for printing on everything from glossy photo paper to heavy cardstock.
4. Ease of use: Inkjet plotters are highly intuitive and easy to use, thanks to their user-friendly interfaces and advanced software. Many models also feature automated features like paper loading, print head cleaning, and ink level monitoring, to streamline the printing process and reduce waste.
5. Low cost: Despite their advanced features and high-quality output, Are relatively affordable compared to other large format printing options. This makes them accessible to a wider range of users, including small business owners, independent artists, and hobbyists.
6. Energy efficient: Consume less energy than traditional printing methods, making them a more environmentally friendly choice. Many models also feature sleep mode and other energy-saving options, helping to reduce overall energy consumption and lower printing costs.
Overall, inkjet plotters offer a range of benefits and advantages over other printing methods, making them an ideal choice for anyone needing high-quality, large format prints
![]() | ![]() | ![]() |
Step 1 Design image on software or receive customer design | Step 2 Put material on printer | Step 3 The Maintop/RIP/PP software to complete print |
