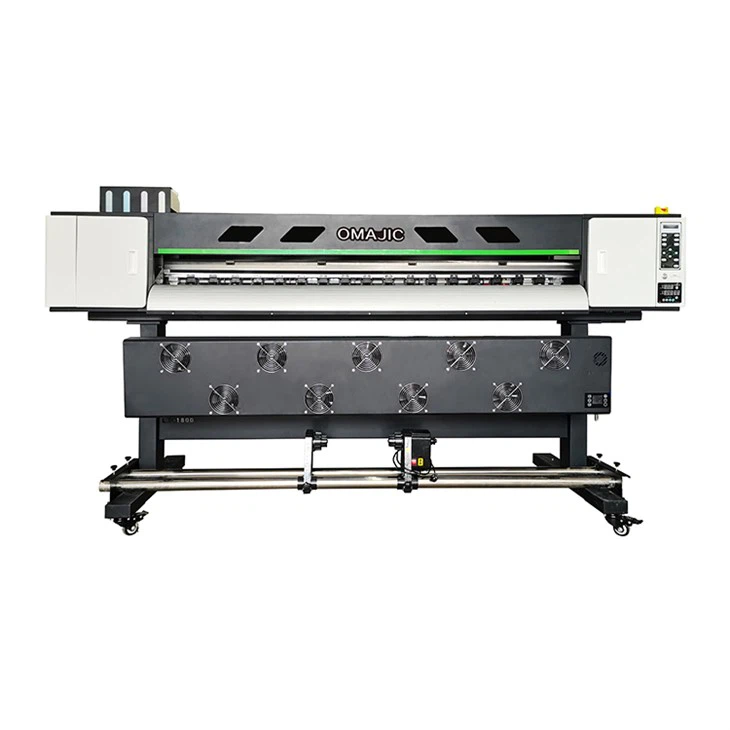

Products Description of Plotter Printer 160cm

The Plotter Printer 160cm is a large-format printing machine that can handle a range of printing applications. The printer utilizes eco-solvent ink, which is a high-quality, water-resistant ink that can produce vivid and long-lasting prints on a variety of media, including vinyl, fabric, canvas, and more. With two print heads, the printer can print twice as fast, making it ideal for high-volume printing jobs. The machine is equipped with advanced features, such as automatic media feeding and cutting and a user-friendly interface, making it easy and efficient to operate. It is suitable for businesses in the signage, advertising, and printing industries, as well as for individuals who require high-quality large-format printing.

20230329164506ec375a302be74bdd841429ea2bfa18bd

Products parameters

Model	OM-ECO1802E
Printhead	two XP600/DX5/DX7/I3200
Printhead life time	6-12months
Maximum printing width	1750mm
Color	CMYK
(4/6/8/pass)Printing speed	4 pass :40m2/h 6 pass :30m2/h
Print material	PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.
Printing height	2-5mm adjustable
Quantity of roller pin	14
Rip software	Maintop6.0/ Photoprint
Supply voltage,Power	220V 1350W
Image format	TIFF, JPEG,JPG,PDF,etc.
Operation environment	temperature :27℃ - 35℃, humidity:40%-60%
Aviable ink	eco solvent ink
Consumble of ink for 1sqm(CMYK)	250sqm
Interface type	Lan
Board type (brand)	Senyang
Rail brand	Hiwin
Servo Motor Brand	JMC
Ink tank capacity / waste ink tank capacity	1.2L / 1L
Ink stack drawing method	Lifting ink stack
Ink supply system	Positive and negative supply ink
Beam material	Aluminum
Printer size	2638mm510mm700mm
Packing size	2715mm730mm700mm
Standard spare parts package	with
Warranty	1 year(except printhead)
Automatic height	with
Anti rubbing material switch	with
Heating system	Front platform heating exterior fan and infrared heater
Additional function	Alarm of short ink Alarm of full of waste ink Alarm of paper shortage
Take-up system	Single motor take-up system(Standard)
Protection of printhead	Automaticlly cleaning system

Advantages of Plotter Printer 160cm

202303291710565001bf84936f44bab91858a4cc07de5f

Take-up paper system

Dual motor front and back paper feeding,Leadshine External and Internal drying

External and Internal drying

9pcs Fan and Ruby tube dry, material could dry faster. motor control feed more stably

Lifting ink station

Automatic lifting ink stack and Printhead

moisturizing when printer off,Prevent nozzle

clogging

Ink Supply system

1.5L large capacity and secondary car-tridges,automatic shortage ink alarm.keep ink supply more stably.

Anti-collision device

Anti-collision device for printhead, prevent printhead hitting causing lmproper operation

Here are some advantages of using the Plotter Printer 160cm:

1. Large format printing: One of the primary advantages of a plotter printer is its ability to print large format prints up to 160cm wide, making it ideal for printing large banners, posters, and signs.

2. High-quality output: Plotter printers use advanced technology and printing methods to produce high-quality prints with fine details, crisp lines, and vibrant colors that can stand up to close inspection.

3. Versatility: Plotter printers are capable of printing on a wide range of materials, including vinyl, canvas, paper, and fabric. This makes them ideal for printing a variety of applications, from outdoor billboards to indoor displays.

4. Cost-effective: Despite their large size and complex technology, plotter printers are cost-effective to use and maintain. They require less ink and toner than traditional printers and can produce larger prints in less time, saving printing costs in the long run.

5. Increased productivity: A plotter printer can produce prints quickly and efficiently, helping to increase productivity in a busy printing environment. This is particularly useful for printing multiple copies of the same product or printing large orders in a shorter amount of time.

6. Customization: Plotter printers can print customized designs and graphics to meet specific needs and requirements. This is particularly useful for businesses that require unique branding or promotional materials to stand out in a crowded market.
