Digital Cylinder Printer C180
2.Equipped with Epson I1600/XAAR1201/G5i print heads
3.Color/w/v at same time printing
4.Support 3D relief printing
Description
Technical Parameters

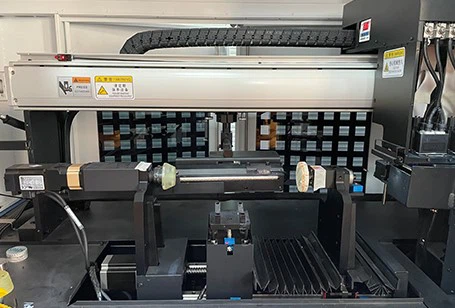

Products Description of UV Cylinder Printer C180
UV Cylinder Printer C180 with 3-4 Ricoh G5i: Revolutionizing Printing Technology
In the ever-evolving world of printing technology, the C180 UV Cylinder Printer with 3-4 Ricoh G5i stands out as a game changer. This innovative printer has received attention and acclaim for the many features it brings to the table.
One of the most striking aspects of the UV Cylinder Printer C180 is its ability to print on cylindrical objects. This capability opens up a whole new world of possibilities for businesses and individuals. From custom bottles, jars and tubes to personalized promotional products and decorations, this printer offers endless creative potential.
The UV drum printer C180 is also equipped with 3-4 Ricoh G5i print heads, which will elevate the printing experience to a new level. With these high-quality printheads, users can expect superior image resolution, impressive color accuracy and impeccable print quality. Whether you're printing vibrant graphics or fine detail, the Ricoh G5i printhead ensures crisp, precise results every time.
Products parameters
| Model No. | OM-C180 |
| Machine Type | Automatic Digital Printer |
| Printer Head | 3~4pcsRicoh G5i Printhead |
| Media length | 60-300mm |
| Media diameter | OD 40~150mm |
| Materials to Print | Various opaque cylinder materials |
| Printing Quality | True Photographic Quality |
| Ink Colors | CMYK+W+V |
| Ink Type | UVLED Ink :Vivid color Ec-friendly(Zero-VOC), Longer outdoor life |
| Color Managemen | Automatic Negative Pressure system for Single Color |
| Ink Cartridges Capacity | 1500m/Color |
| Printing Speed |
CMYK: 15second L:200mm OD: 60mm CMYK+W: 20second CMYK+W+V: 30second |
| Auto Cleaning | Automatic Circulation and Pumping Ink for 15 days without Printing Job |
| Max. Resolution | 900x1800dpi |
| Operating System | WINDOWS 71 WINDOWS 10 |
| Interface | 3.0 LAN |
| RIP Software | Print Factory |
| Languages | Chinese/English |
| White ink | Automatic Stir and circulation |
| Voltage | AC 220V+10%, 60Hz, single phase |
| Power Consumption | 1500w |
| Working Environment | 25-28 °C. 40%-70% Humidity |
| Printer Size | 1390x7 10x1710mm |
| Net Weight | 420KGS |
| Package Type | Wooden Case |
| Package Size | 1560*1030* 1800mm |
Advantages of the UV Cylinder Printer C180
 |
 |
 |
||
|
Spiral print Guarantee the seamless prints |
LCD touch screem HMI control More intelligent for fast operating. |
BYHX board Supporting standby automatic cleaning function |
 |
 |
 |
||
|
3 methods protecting the printhead Laser limit sensor for anti-crash; Light detection; Media detect |
Seven-axis motor Automatically controls all mechanical actions XYZ axis, ink stack up, fixture lifting, bottle clamping, platform tilt |
Refilled ink tank with alarm Warning when ink shortage |
Here are some advantages of using the UV Cylinder Printer C180:
the UV technology used by this printer makes it even more impressive. UV inks cure instantly upon exposure to UV light, resulting in durable, fade-resistant, and water-resistant prints. This means that the UV Roll Printer C180 produces prints that are not only visually appealing but also durable enough for both indoor and outdoor applications.
The printer's user-friendly interface allows for easy operation, even by those with limited technical expertise. Intuitive software enables users to handle complex printing tasks with ease, saving time and effort. In addition, the printer's compatibility with various file formats and seamless integration with design software enhances its power and versatility.
Equipped with 3-4 Ricoh G5i's, the UV Roll Printer C180 is also designed with efficiency and productivity in mind. With its fast print speed and multi-head configuration, it can handle high-volume print jobs without compromising quality. This time-saving feature is especially beneficial for businesses looking to streamline production processes and meet tight deadlines.
In conclusion, the C180 UV Cylinder Printer with 3-4 Ricoh G5i represents a breakthrough in printing technology. Its ability to print on cylindrical objects, combined with the exceptional print quality provided by the Ricoh G5i printhead, makes it a valuable asset for businesses and individuals looking to unleash their creativity. With its user-friendly interface and efficient operation, this printer is poised to revolutionize the printing industry and meet the demands of a fast-growing market.
