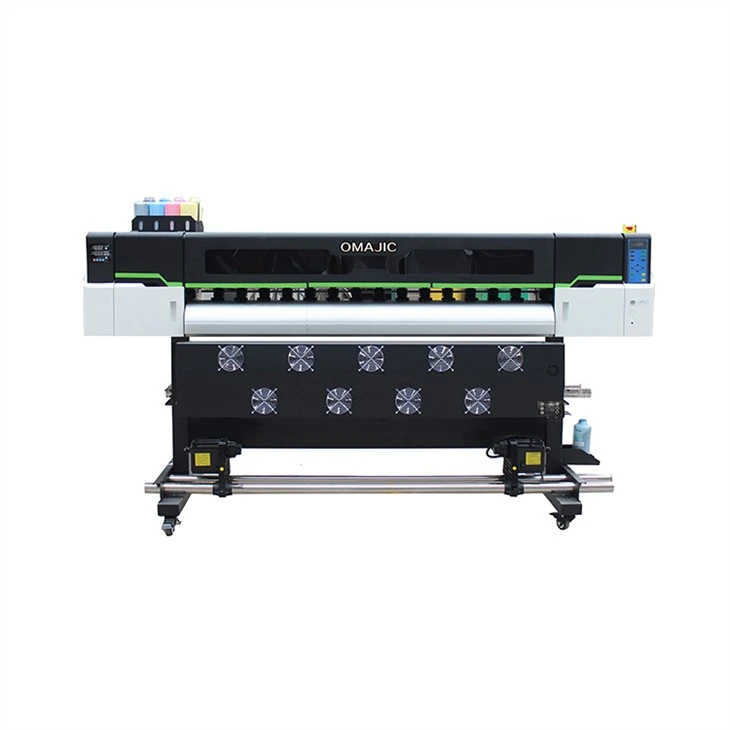

High Speed Eco Solvent Printer
Realize high solution and saturation color Printing materials: suitable for indorr and outdoor such as PP paper,Car sticker / Lamp cloth / Face film / Coated banner / Flag cloth...etc
Description
Technical Parameters

Products Description of High Speed Eco Solvent Printer
1.8M Eco Solvent Printer With 4pcs Epson Printheads,Heavy Duty Printer Machine has many advantages, whether it is in terms of price, quality or performance, this photocopier prints out with high definition, stable inkling, and good color reproduction.

Products parameters
|
Name |
OM-ECO1804Pro |
|
Model No. |
OM-ECO1804Pro |
|
Machine Type |
Automatic, Flatbed, Heavy Body, Digital Printer |
|
Printer Head |
4pcs i3200 Print Head |
|
Max Print Size |
70' (180cm) |
|
Max Print Height |
1-5mm |
|
Materials to Print |
PP Paper/Backlit film/Wall paperlvinylOne-way vision/Flex banner etc |
|
Printing Method |
Drop-on-demand Piezo Electric Inkjet |
|
Printing Direction |
Unidirectional Printing or Bi-directional Printing Mode |
|
Printing Resolution |
Standard Dpi: 720×1200dpi |
|
Printing Quality |
True Photographic Quality |
|
Nozzle Number |
3200 |
|
Ink Colors |
CMYK |
|
Ink Type |
Eco Solvent Ink |
|
Ink System |
CISS Built Inside With Ink Bottle |
|
Ink Consumption |
360*1800dpi 3pass C/M/Y/K=16ml/sqm |
|
720*1200dpi 4pass C/M/Y/K=16ml/sqm |
|
|
720*2400dpi 6pass C/M/Y/K=25ml/sqm |
|
|
Ink Supply |
2L ink tank with positive pressure continuos supply (Bulk ink system) |
|
Printing Speed |
2pcs I3200 head : 4pass 40sqm/h 720*2400dpi 6pass 30sqm/h / 4 pcs I3200 head :360*1800dpi 3pass 105sqm/h 720*1200dpi 4pass 82sqm/h 720*2400dpi 6pass 56sqm/h |
|
File Format |
PDF,JPG,TIFF,EPS,AI,etc |
|
Height Adjustment |
Automatic With Sensor. |
|
Media Feeding System |
Manual |
|
Max Media Weight |
30 KG |
|
Operating System |
WINDOWS 7/WINDOWS 8/WINDOWS 10 |
|
Interface |
3.0 LAN |
|
Software |
ONYX/SAi PhotoPrint/Ripprint |
|
Languages |
Chinese/English |
|
Voltage |
110V/ 220V |
|
Power Consumption |
1350w |
|
Working Environment |
20-28 Degrees. |
|
Package Type |
Wooden Case |
|
Machine Size |
3025*824*1476mm |
|
Net Weight |
250kg |
|
Gross Weight |
300kg |
|
Packing Size |
2930*760*850mm |
|
Price Includes |
Printer,software, Inner six angle wrench, Small screwdriver, Ink absorption mat, USB cable, Syringes, Damper, User manual, Wiper, Wiper Blade, Mainboard fuse, Replace screws and nuts |
Advantages of the High Speed Eco Solvent Printer
![]() |
![]() |
![]() |
||
|
Bulk ink system
Two levels ink tank , avoid clog the print head |
Servo motor
Working more smooth and without noisy . |
Three foot pinch rollers
This roller fix the materials more stable not broken
The head during printing. |
||
![]() |
![]() |
![]() |
||
|
Hiwin guide
Hiwin Brand guide , working more longer life time . |
Collector
Include the take up system as free ,working stable |
Lifting automatically capping station
lifting automatic .easy to do the maintain |
Advantages of High Speed Eco Solvent Printer
The Heavy Duty Printer Machine is a high-quality, high-performance industrial-grade printer. It is widely used in various fields such as manufacturing, healthcare, aerospace, automotive industry and many more. In the foreign market, it has the following advantages, which make foreign buyers particularly favor it.
1. High output quality
The Heavy Duty Printer Machine can output high-quality prints with sharp images, rich details and rich colors. This is critical for many applications, such as tracking and monitoring the production process of products in manufacturing, printing and management of medical images in healthcare, etc.
2. High-speed printing and productivity
Another important advantage is high-speed printing and productivity. In industrial manufacturing and production environments, time is money. The Heavy Duty Printer Machine completes printing jobs faster, increasing productivity and cost-effectiveness.
3. Durability and reliability
Designed for industrial applications with high durability and reliability. It can work under harsh environmental conditions, such as high temperature, low temperature, humidity, dust, etc. Plus, it can run for extended periods of time without frequent maintenance or downtime.
4. Network connection and automation functions
Modern manufacturing and production environments require highly automated solutions. Heavy Duty Printer Machine can be easily integrated with other machines and equipment to automate and digitize the production process. It can also be monitored and controlled via network connection and cloud services.
5. Wide application
It has a wide range of applications in many different industries and application fields. It can be used to print various types of labels, barcodes, identifiers, signs, etc., as well as print quality control and monitoring of various materials.
6. Versatility and flexibility
The Heavy Duty Printer Machine also boasts versatility and flexibility. It can handle different types of labels and tags including plastic, metal, paper, fabric and more. It also supports different printing technologies such as thermal transfer, direct thermal, thermal printing, etc.
7. Customer Support and Services
For foreign buyers, customer support and service is also one of the key factors in choosing Heavy Duty Printer Machine. Many companies provide worldwide support and repair services to ensure customer satisfaction.
To sum up, attractive advantages in foreign markets: high-quality output quality, high-speed printing and production efficiency, durability and reliability, network connectivity and automation functions, wide range of applications, versatility and flexibility, and customer support and service. These advantages make Heavy Duty Printer Machinee a popular industrial grade printer in foreign market.
