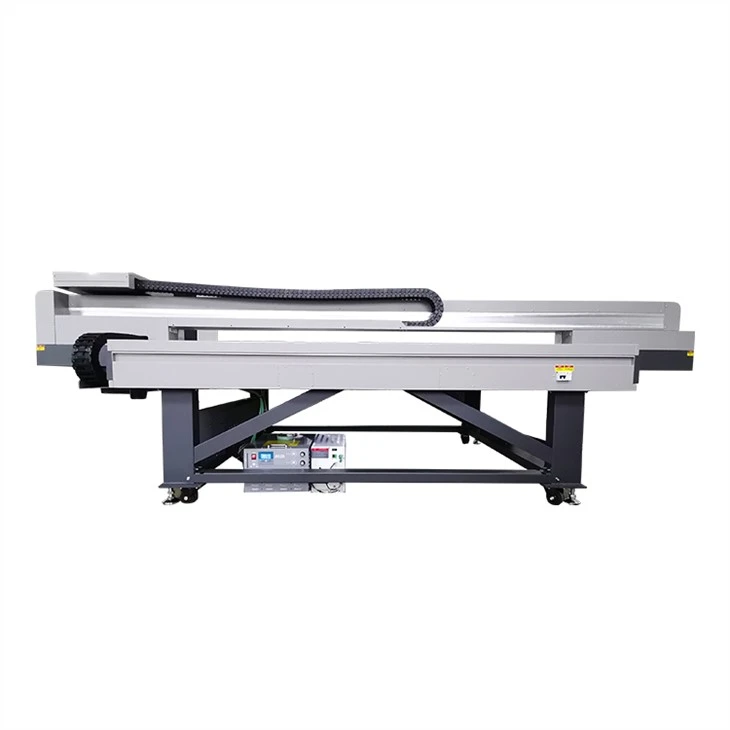

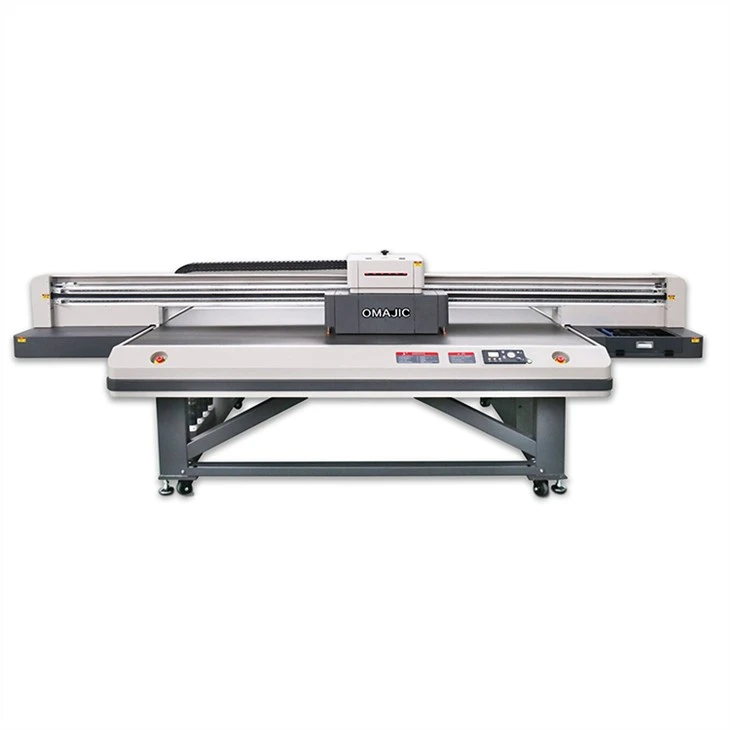

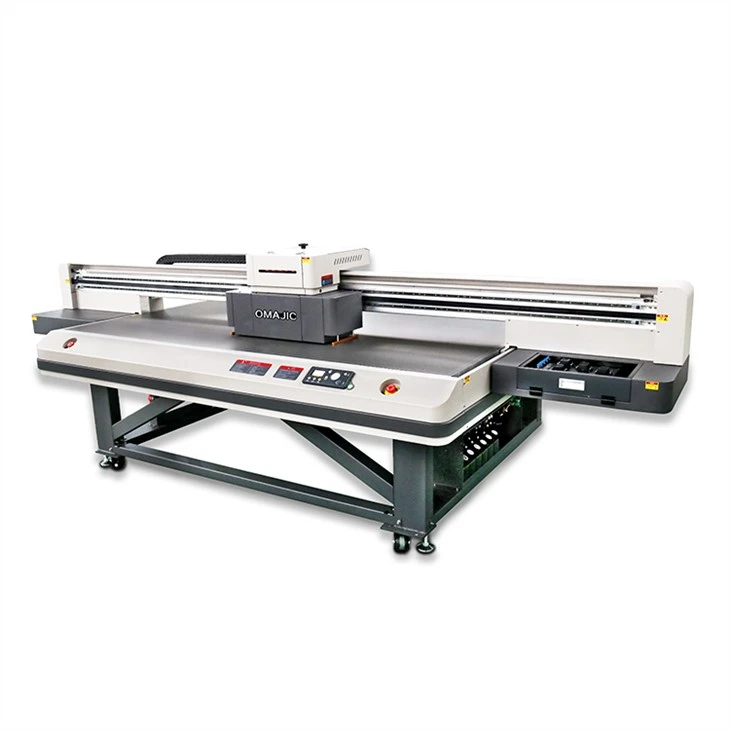

Large Format UV Flatbed Printer
Head board: Hoson board
Printing size:2500*1300mm
Print height: 100mm
Printing speed: 4 pass CMYK+W+V=3 heads, Speed is 11sqm/h
4 pass 2CMYK+2W=4heads, speed is 19sqm/h
4 pass 4CMYK=4 heads, speed is 30sqm/h
Description
Technical Parameters
Products Description of Large Format UV Flatbed Printer
Large format UV flatbed printers are printing machines designed for industrial and commercial printing applications. They use UV-curable inks that are dried by exposure to ultraviolet light, ensuring high-quality, waterproof, and fade-resistant prints.
These printers have a flatbed on which the printing material is placed, and the UV-curable ink is jetted onto the surface of the material to create a durable print. Large format UV flatbed printers offer a wide range of printing capabilities, including direct printing on a variety of materials such as plastic, wood, glass, metal, and acrylic among others.
Some of the key features of large format UV flatbed printers include high-resolution printing, fast printing speeds, variable droplet printing technology, multi-layer printing, and automatic head cleaning functions. These features make them ideal for printing large graphics such as posters, banners, billboards, and materials for indoor and outdoor advertising.
Additionally, large format UV flatbed printers are energy-efficient, making them environmentally friendly with low operating costs. They have become increasingly popular in the printing industry due to their high-quality, versatile and efficient printing capabilities.
Products parameters
| Model No. | UV2513 |
| Printer head | 3/4pc I3200-U1 |
| Machine Type | Automatic, Flatbed, UV LED Lamp, Digital Printer |
| Max Print Size | 2500*1300mm |
| Max Print Height | 10cm |
| Materials to Print | Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc, |
| Printing Direction | Unidirectional Printing or Bi-directional Printing Mode |
| Printing Resolution | Mode 1 : CMYK + W + V 3 heads ; 4 pass production speed 12-14sqm/h Mode 2: 2CMYk + 2W ; ; 4 pass production speed 20-24sqm/h Mode 3: 4 CMYK ; ; 4 pass production speed 50-60sqm/h |
| Nozzle Number | 3200 |
| Ink Colors | CMYK+W+C |
| Ink Type | UV Ink |
| Ink System | 1500ml Ink Bottle |
| File Format | PDF,JPG,TIFF,EPS,AI,etc |
| Max Media Weight | 75 KG/M² |
| Operating System | WINDOWS 7/WINDOWS 8/WINDOWS 10 |
| Interface | 3.0 LAN |
| Software | Photoprint/Maintop |
| Languages | Chinese/English |
| Voltage | 220V |
| Working Environment | temperature :27℃ - 35℃, humidity:40%-60% |
| Package Type | Wooden Case |
| Machine size | 4100*10000*1350mm |
Advantages of the Large Format UV Flatbed Printer
 |  | |
Alarm On Ink Tank alarming when ink lacked , very intelligentize | Dural Suction Motors Sucks any materials stable and easier. |
 |  |  | ||
Print Head Anti-collision System Print any materials witout static, save materials cost . | HiWin High Speed Mute Slider stable brand Guide railway , working without noisy and smooth . | Y Axis Ball Screw Movement Work more stable and extend printer life time. |
Here are some advantages of using the Large Format UV Flatbed Printer:
1. Versatile Printing Capability: Large Format UV Flatbed Printers are highly versatile and can be used to print on a wide range of materials, including rigid substrates, flexible materials, and even irregular shapes.
2. High-Quality Graphics: UV Flatbed Printers use advanced inkjet technology that produces high-quality graphics with vivid colors, sharp details, and accurate color matching.
3. Speed and Efficiency: Large Format UV Flatbed Printers have high production speeds and can produce large-format prints quickly and efficiently, cutting down the time needed for manually feeding materials into the printer.
4. Durable and Long-lasting Prints: UV curable inks used in UV Flatbed Printers offer excellent adhesion and durability even when exposed to harsh outdoor environments, making them ideal for outdoor signage and graphics.
5. Cost-effective: UV Flatbed Printers are more cost-effective than traditional printing methods because they require minimal set-up time, lower ink usage, and produce less waste.
6. Customization and Personalization: With UV Flatbed Printers, it is possible to create custom and personalized prints, including variable data printing, which is especially useful for companies that require mass personalization in their business.
7. Environmentally friendly: UV Flatbed Printers are eco-friendly since they use UV curable inks that are free of harmful VOCs (volatile organic compounds) that are present in solvent-based inks.
