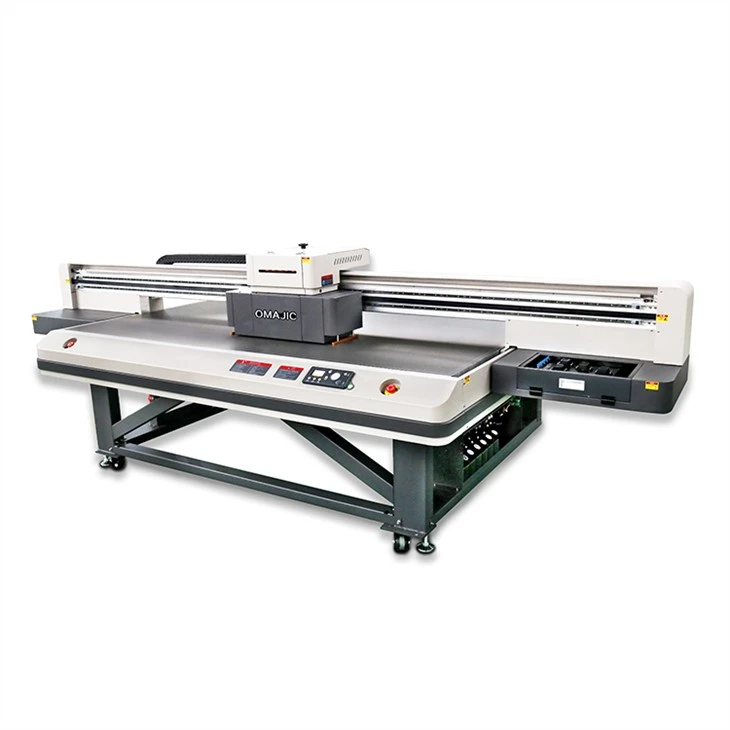

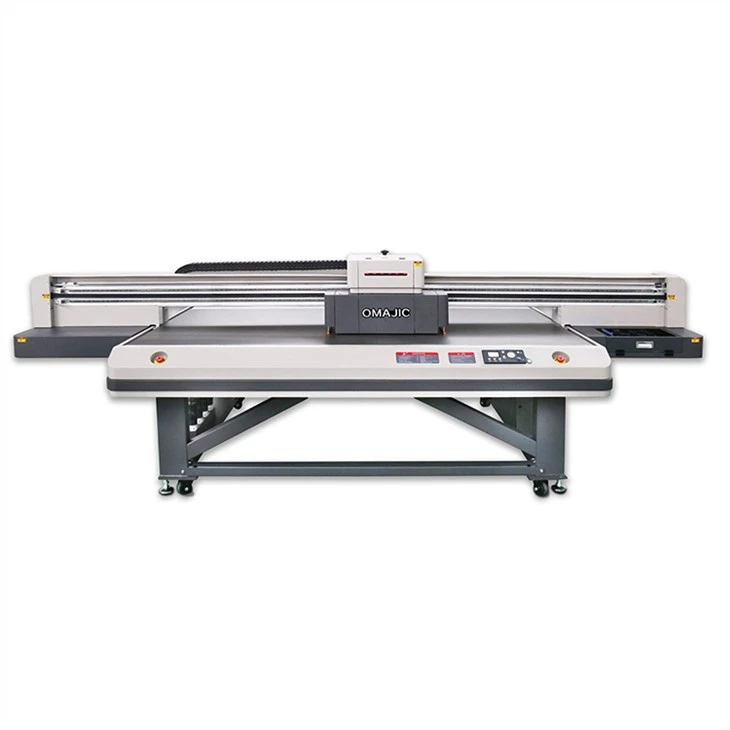

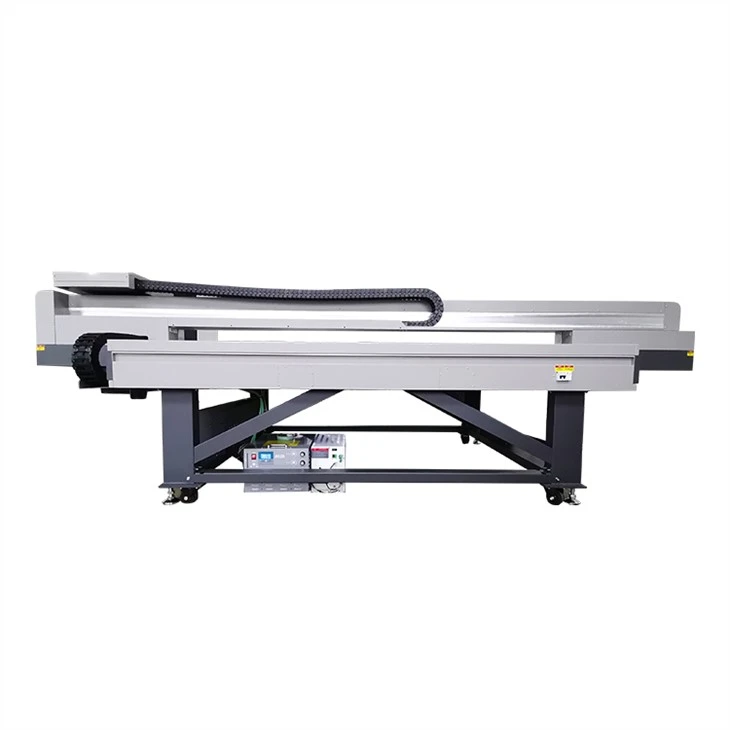

UV 2513 With I3200 Glass Printer
Description
Technical Parameters
Products Description of UV 2513 With I3200 Glass Printer
UV2513 has many excellent performance, in cost, freight, price and quality have obvious advantages. A 20 flat cabinet can hold 2 sets of this machine, while other 2513 machines need a whole cabinet to hold them. At the same time, this is a new product, no one else is producing it, so we can offer agents and end customers a more favorable price. Meanwhile, our quality has been declining, and we are equipped with Hoson board and negative pressure ink supply system.
Products parameters
| Model No. | UV2513 |
| Printer head | 3/4pc I3200-U1 |
| Machine Type | Automatic, Flatbed, UV LED Lamp, Digital Printer |
| Max Print Size | 2500*1300mm |
| Max Print Height | 10cm |
| Materials to Print | Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc, |
| Printing Direction | Unidirectional Printing or Bi-directional Printing Mode |
| Printing Resolution | Mode 1 : CMYK + W + V 3 heads ; 4 pass production speed 12-14sqm/h Mode 2: 2CMYk + 2W ; ; 4 pass production speed 20-24sqm/h Mode 3: 4 CMYK ; ; 4 pass production speed 50-60sqm/h |
| Nozzle Number | 3200 |
| Ink Colors | CMYK+W+C |
| Ink Type | UV Ink |
| Ink System | 1500ml Ink Bottle |
| File Format | PDF,JPG,TIFF,EPS,AI,etc |
| Max Media Weight | 75 KG/M² |
| Operating System | WINDOWS 7/WINDOWS 8/WINDOWS 10 |
| Interface | 3.0 LAN |
| Software | Photoprint/Maintop |
| Languages | Chinese/English |
| Voltage | 220V |
| Working Environment | temperature :27℃ - 35℃, humidity:40%-60% |
| Package Type | Wooden Case |
| Machine size | 4100*10000*1350mm |
Advantages of the UV 2513 with I3200 glass printer
 |  | |
Alarm On Ink Tank alarming when ink lacked , very intelligentize | Dural Suction Motors Sucks any materials stable and easier. |
 |  |  | ||
Print Head Anti-collision System Print any materials witout static, save materials cost . | HiWin High Speed Mute Slider stable brand Guide railway , working without noisy and smooth . | Y Axis Ball Screw Movement Work more stable and extend printer life time. |
Here are some advantages of using the UV 2513 with I3200 glass printer:
1. high precision: UV flatbed 2513 can achieve high precision printing, can be within the thickness of 3mm to achieve accurate printing.
2. Large format: UV Flatbed 2513 has a relatively large printing area, and can print large format of 2.5m x 1.3m, which is convenient for large format production.
3. colorful: UV flatbed 2513 can print a variety of colors and complex patterns, but also on a variety of materials to print.
4. water and sunlight: UV flatbed 2513 print out the pattern with water and sunlight characteristics, can effectively protect the pattern from external factors.
5. can be printed directly: UV flatbed 2513 does not require a specific printing medium, can be printed directly on the plate, paper, fabric and other materials.
