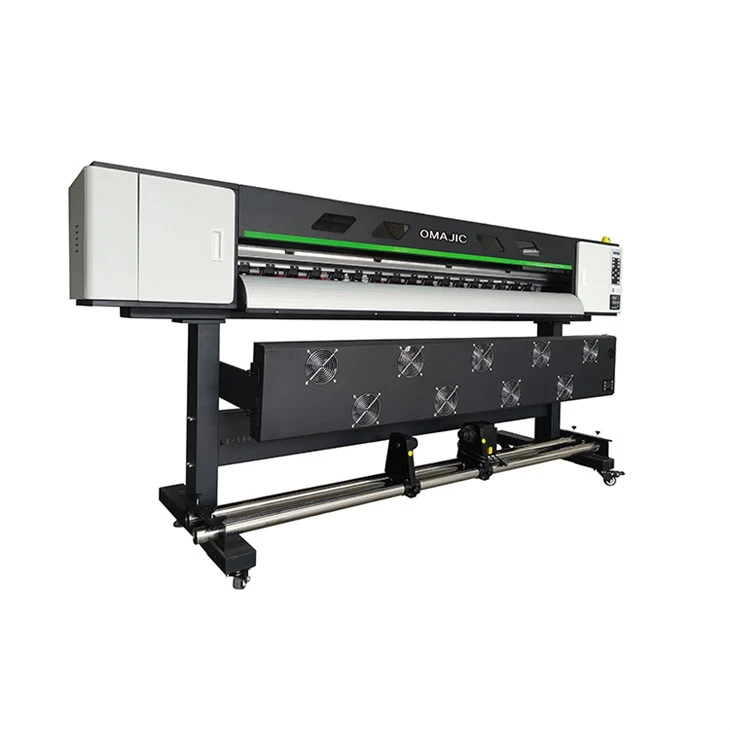

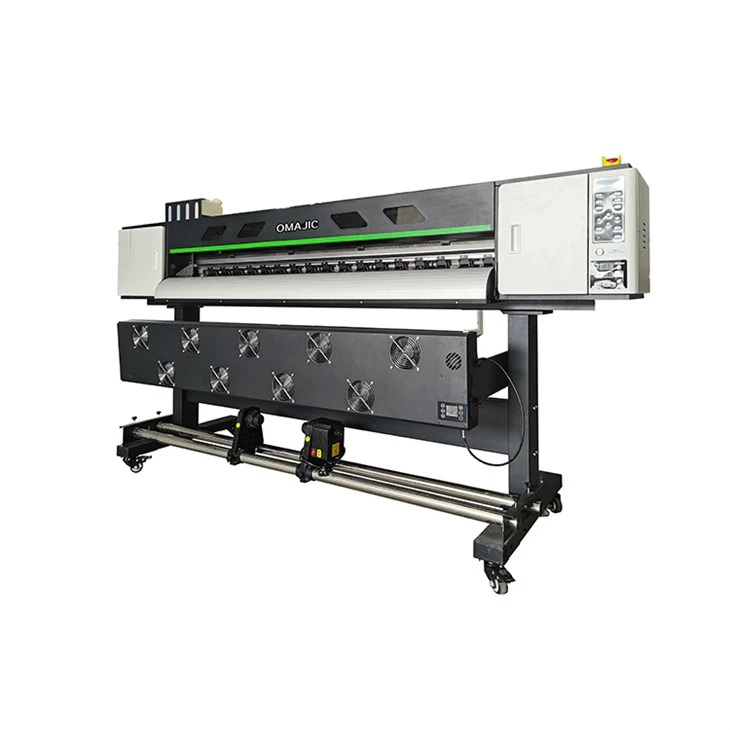

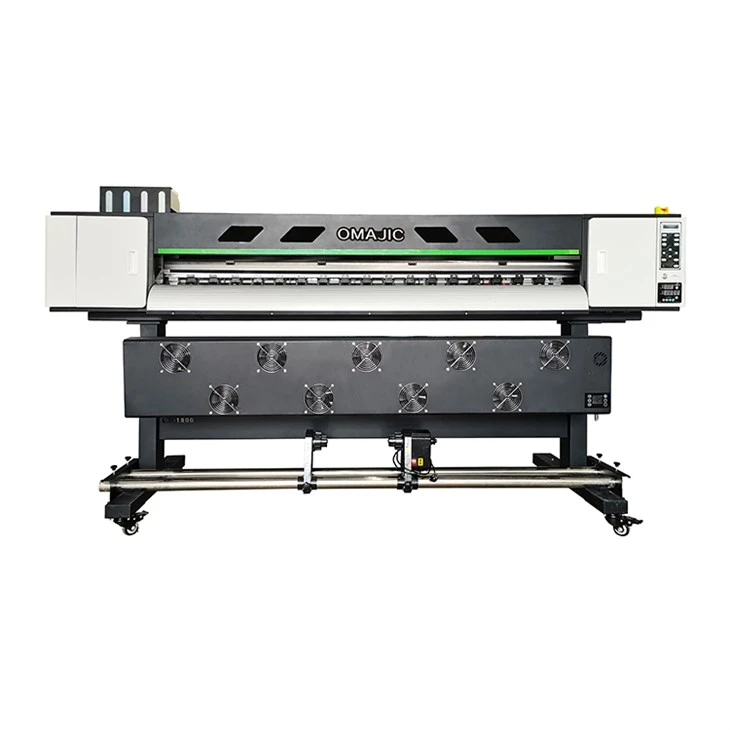

Solvent Printer Machine

Product Parameter

Model：

OM 1801

Printhead：

one pcs XP600/DX5/DX7/I3200

Rip software：

Maintop6.0

NO

Parameter

Parameter

1

Printhead life time

6-12months

2

Maximum printing width

1750mm

3

Color

CMYK

4

(4/6/8/pass)Printing speed

4 pass :17m2/h 6 pass :12m2/h 8 pass :9m2/h

5

Pirnt resolution

4 pass :720*600dpi 6pass:720*900dpi 8pass :720*1200dpi

6

Print material

PP paper,Backlit film,Wall paper,Vinyl,Flex banner etc.

7

Printing height

2-5mm adjustable

8

Quantity of roller pin

14

9

Rip software

Maintop6.0/ Photoprint

10

Supply voltage,Power

220V

11

Image format

TIFF, JPEG,JPG,PDF,etc.

12

Operation environment

temperature :27℃ - 35℃, humidity:40%-60%

13

Aviable ink

eco solvent ink

14

Consumble of ink for 1sqm(CMYK)

250sqm

15

Interface type

Lan

16

Board type (brand)

Senyang

17

Rail brand

Hiwin

18

Servo Motor Brand

JMC

19

Ink tank capacity / waste ink tank capacity

1.2L / 1L

20

Ink stack drawing method

Lifting ink stack

21

Ink supply system

Positive and negative supply ink

22

Beam material

Aluminum

23

Printer size

2638mm*510mm*700mm

24

Packing size

2715mm*730mm*700mm

Function

25

Standard spare parts package

with

26

Warranty

1 year(except printhead)

27

Automatic height

with

28

Anti rubbing material switch

with

29

Heating system

Front platform heating exterior fan and infrared heater

30

Additional function

Alarm of short ink Alarm of full of waste ink Alarm of paper shortage

31

Take-up system

Single motor take-up system(Standard)

32

Protection of printhead

Automaticlly cleaning system
